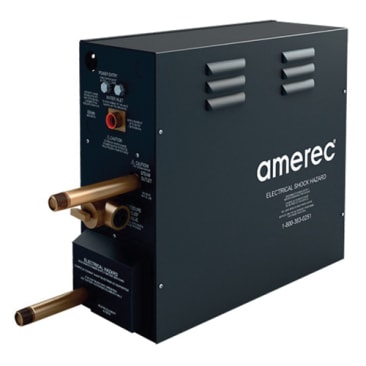

AMEREC 9016-500 AX7.5 80-200CUFT 7.5KW 208V STEAM GENERATOR
MFR Part #: 9016-500
SKU #: 1206913
Brand: amerec®
amerec® AX Series 9016-500 AX Generator, 7510 kW, 208 V, 3/8 in Water Inlet, 3/4 in Drain Outlet, 1/2 in Steam Outlet
Limited Lifetime
For residential
ETL Listed|IEC Compliant
Please contact your CSR regarding pricing
Product Details
Attributes
Features
Resources
amerec® AX Generator, AX Series, 7510 kW, 208 V, 36/21 A, 1 ph, 3 ph Phase, 3/8 in Water Inlet, 3/4 in Drain Outlet, 1/2 in Steam Outlet, 3/4 in Safety Valve, 100 cu-ft Minimum Steam Room, 200 cu-ft Maximum Steam Room, NPT Connection, Recessed, Surface Mounting, Stainless Steel Housing, 16-1/2 in Overall Length, 6-1/4 in Overall Width, 15 in Overall Height
We have designed our AX Series generators for long-lasting performance and reliability. Consistent and even flow of steam are unique amerec® features that set our generators apart. amerec® control app is a Free download for android and IOS. It provides on/off control via Wi-Fi with your elite cloud control on AX steam units.
Steam Outlet Size:1/2 in
Voltage Rating:208 V
Water Inlet Size:3/8 in
Amperage Rating:36/21 A
Connection Type:NPT
Drain Outlet Size:3/4 in
Housing Material:Stainless Steel
Maximum Steam Room Size:200 cu-ft
Minimum Steam Room Size:100 cu-ft
Mounting Type:Recessed, Surface
Overall Height:15 in
Overall Length:16-1/2 in
Overall Width:6-1/4 in
Phase:1 ph, 3 ph
Power Rating:7510 kW
Safety Valve Size:3/4 in
Series:AX Series
- Sequential temperature control delivers a more consistent flow of soft steam and a more stable, comfortable steam bath experience
- AX generators can be connected together to heat steam baths larger than 550 cu-ft
- Stainless steel tank and water level probes provide years of trouble-free operation
- Warm start, a feature used in day spas and for use with Elite™ cloud control only, maintains a tank water temperature at just below boiling, which reduces heating time by 2 to 3 min
- Six sizes handle a range of steam bath sizes up to 550 cu-ft
- Removable heating elements provide easy and economical service
Product Details
amerec® AX Generator, AX Series, 7510 kW, 208 V, 36/21 A, 1 ph, 3 ph Phase, 3/8 in Water Inlet, 3/4 in Drain Outlet, 1/2 in Steam Outlet, 3/4 in Safety Valve, 100 cu-ft Minimum Steam Room, 200 cu-ft Maximum Steam Room, NPT Connection, Recessed, Surface Mounting, Stainless Steel Housing, 16-1/2 in Overall Length, 6-1/4 in Overall Width, 15 in Overall Height
We have designed our AX Series generators for long-lasting performance and reliability. Consistent and even flow of steam are unique amerec® features that set our generators apart. amerec® control app is a Free download for android and IOS. It provides on/off control via Wi-Fi with your elite cloud control on AX steam units.
Attributes
Steam Outlet Size: 1/2 in
Voltage Rating: 208 V
Water Inlet Size: 3/8 in
Amperage Rating: 36/21 A
Connection Type: NPT
Drain Outlet Size: 3/4 in
Housing Material: Stainless Steel
Maximum Steam Room Size: 200 cu-ft
Minimum Steam Room Size: 100 cu-ft
Mounting Type: Recessed, Surface
Overall Height: 15 in
Overall Length: 16-1/2 in
Overall Width: 6-1/4 in
Phase: 1 ph, 3 ph
Power Rating: 7510 kW
Safety Valve Size: 3/4 in
Series: AX Series
Features
- Sequential temperature control delivers a more consistent flow of soft steam and a more stable, comfortable steam bath experience
- AX generators can be connected together to heat steam baths larger than 550 cu-ft
- Stainless steel tank and water level probes provide years of trouble-free operation
- Warm start, a feature used in day spas and for use with Elite™ cloud control only, maintains a tank water temperature at just below boiling, which reduces heating time by 2 to 3 min
- Six sizes handle a range of steam bath sizes up to 550 cu-ft
- Removable heating elements provide easy and economical service
