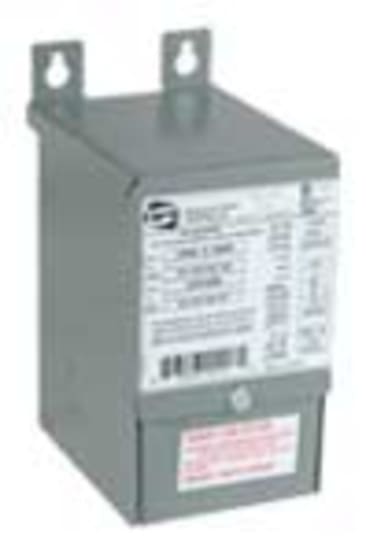

HAMMOND PWR C1FC15PE 1.5KVA 600PRIM 120/240SEC 1PH TRANSFORMER
Product Details
Features
Resources
HPS, C1FC15PE, Distribution Transformer, Encapsulated Potted, Series: Fortress™, 600 V AC Primary, 120/240 VAC Secondary, 0.15 kVA Power, 60 Hz Frequency, 1 ph, Copper Tab/Wire Lead Connection, Wall Mounting, 130 deg C Insulation, NQ0-N3R Indoor/Outdoor Enclosure, 30 to 40 deg C, 5-1/4 in L x 3-3/4 in W x 7-1/4 in H Dimensions
HPS Fortress™ is an innovative design that provides the ideal solution for commercial applications where quality, ease of installation and low cost are key. All units are encapsulated with electrical grade silica sand and resin compounds, which completely enclose the core and coil to seal out moisture, airborne contaminants and eliminates corrosion and deterioration.
- Electrostatic shield standard on all 3-phase units and single phase units from 750 VA and up
- Innovative potted design provides single screw access on a hinged cover to the wiring compartment for commercial indoor and outdoor applications
Product Details
HPS, C1FC15PE, Distribution Transformer, Encapsulated Potted, Series: Fortress™, 600 V AC Primary, 120/240 VAC Secondary, 0.15 kVA Power, 60 Hz Frequency, 1 ph, Copper Tab/Wire Lead Connection, Wall Mounting, 130 deg C Insulation, NQ0-N3R Indoor/Outdoor Enclosure, 30 to 40 deg C, 5-1/4 in L x 3-3/4 in W x 7-1/4 in H Dimensions
HPS Fortress™ is an innovative design that provides the ideal solution for commercial applications where quality, ease of installation and low cost are key. All units are encapsulated with electrical grade silica sand and resin compounds, which completely enclose the core and coil to seal out moisture, airborne contaminants and eliminates corrosion and deterioration.
Features
- Electrostatic shield standard on all 3-phase units and single phase units from 750 VA and up
- Innovative potted design provides single screw access on a hinged cover to the wiring compartment for commercial indoor and outdoor applications
