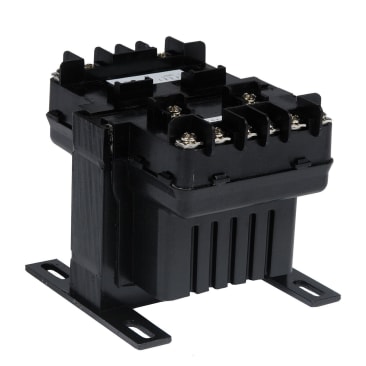

HAMMOND PWR PH250QR 200VA 240/480 PR 12/24 SE CONT XFMR
Product Details
Features
Resources
HPS, PH250QR, Control Transformer, Industrial Molded Open Style, Series: Imperator®, 240/480 V AC Primary, 12/24 VAC Secondary, 250 VA Power, 50/60 Hz Frequency, 1 ph, 20.8/10.4 A Maximum, Screw Connection, Panel Mounting, 130 deg C Insulation, 30 deg C, 4.5 in L x 5.44 in W x 3.81 in H Dimensions
The HPS Imperator™ series of machine tool rated industrial control transformers are specifically designed to meet high inrush industrial applications where electromagnetic components such as relay, solenoids and magnetic motor starters are used.
- Constructed with high quality silicon steel laminations that provide optimum performance and reliability
- Encapsulated coils encased in a custom injection molded cover, protect coils and terminations from moisture, dirt and other industrial airborne contaminants
- Mounting feet made of heavy steel and welded or bolted to the core, these mounting feet provide superior strength in a compact design
- Combination slot/Philips #6 screw, complete with SEMS washer termination
- Optional finger safe terminal covers available on all units
- Terminal connection numbers molded into terminal block and correspond to nameplate and wiring diagrams, make connecting the HPS Imperator quick and simple
- SEMS washer allows for easy connection of supply or load wires with or without terminal connectors
- Innovative terminal block design provides for easy hook-up and installation of fuse clip
- Custom injection molded coil cover with its unique "fin shaped" design combine superior cooling properties with a clean, bold look
- 240 x 480, 230 x 460, 220 x 440 V primary volt
- 12 x 24, 11.5 x 23, 11 x 22 V secondary volt
- Encapsulated copper wound coils encased in a custom injection molded cover
- Secondary fuse clips, fuse clip mounting screws and primary and secondary voltage links/jumpers supplied with transformers
- 40 deg C maximum
Product Details
HPS, PH250QR, Control Transformer, Industrial Molded Open Style, Series: Imperator®, 240/480 V AC Primary, 12/24 VAC Secondary, 250 VA Power, 50/60 Hz Frequency, 1 ph, 20.8/10.4 A Maximum, Screw Connection, Panel Mounting, 130 deg C Insulation, 30 deg C, 4.5 in L x 5.44 in W x 3.81 in H Dimensions
The HPS Imperator™ series of machine tool rated industrial control transformers are specifically designed to meet high inrush industrial applications where electromagnetic components such as relay, solenoids and magnetic motor starters are used.
Features
- Constructed with high quality silicon steel laminations that provide optimum performance and reliability
- Encapsulated coils encased in a custom injection molded cover, protect coils and terminations from moisture, dirt and other industrial airborne contaminants
- Mounting feet made of heavy steel and welded or bolted to the core, these mounting feet provide superior strength in a compact design
- Combination slot/Philips #6 screw, complete with SEMS washer termination
- Optional finger safe terminal covers available on all units
- Terminal connection numbers molded into terminal block and correspond to nameplate and wiring diagrams, make connecting the HPS Imperator quick and simple
- SEMS washer allows for easy connection of supply or load wires with or without terminal connectors
- Innovative terminal block design provides for easy hook-up and installation of fuse clip
- Custom injection molded coil cover with its unique "fin shaped" design combine superior cooling properties with a clean, bold look
- 240 x 480, 230 x 460, 220 x 440 V primary volt
- 12 x 24, 11.5 x 23, 11 x 22 V secondary volt
- Encapsulated copper wound coils encased in a custom injection molded cover
- Secondary fuse clips, fuse clip mounting screws and primary and secondary voltage links/jumpers supplied with transformers
- 40 deg C maximum
