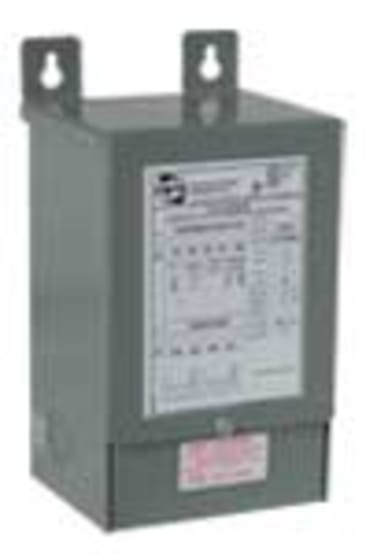

HAMMOND PWR Q007LEKF NEMA 3R ENCL. 7.5KVA EPOXY POTTED
Product Details
Features
Resources
HPS, Q007LEKF, Distribution Transformer, Hazardous Location Encapsulated, Series: Titan®, 240/480 V AC Primary, 120/240 VAC Secondary, 7.5 kVA Power, 60 Hz Frequency, 1 ph, Lead Wire/Tab Connection, Wall Mounting, 180 deg C Insulation, NEMA 3R Enclosure, 30 deg C, 17-1/4 in H x 10 in W x 7-3/4 in D Dimensions
The HPS Titan® Series of products are competitively priced for the rugged, industrial and commercial indoor and outdoor distribution transformer markets. Hammond Power Solutions™ facilities have the most modern testing equipment for the requirements of ANSI, OSHA, UL, CSA, IEC, NEMA, ABS, DNV, BV, etc.
- Electrostatic shield standard on all three phase units and single phase units over 0.50 kVA
- All units are encapsulated with electrical grade silica and resin compounds which completely enclose the core and coil to seal out moisture, airborne contaminants and eliminates corrosion and deterioration
- Rear and side entry into an easily accessible and roomy wiring compartment
- Installation made quick and easy via keyhole mounting slots
- All welded core construction made with high quality, high permeability silicon steel laminations
- Copper wound coils with high dielectric strength insulation
- Front accessible wiring compartment with high and low voltage copper lead wires or tabs
- 40 deg C maximum
Product Details
HPS, Q007LEKF, Distribution Transformer, Hazardous Location Encapsulated, Series: Titan®, 240/480 V AC Primary, 120/240 VAC Secondary, 7.5 kVA Power, 60 Hz Frequency, 1 ph, Lead Wire/Tab Connection, Wall Mounting, 180 deg C Insulation, NEMA 3R Enclosure, 30 deg C, 17-1/4 in H x 10 in W x 7-3/4 in D Dimensions
The HPS Titan® Series of products are competitively priced for the rugged, industrial and commercial indoor and outdoor distribution transformer markets. Hammond Power Solutions™ facilities have the most modern testing equipment for the requirements of ANSI, OSHA, UL, CSA, IEC, NEMA, ABS, DNV, BV, etc.
Features
- Electrostatic shield standard on all three phase units and single phase units over 0.50 kVA
- All units are encapsulated with electrical grade silica and resin compounds which completely enclose the core and coil to seal out moisture, airborne contaminants and eliminates corrosion and deterioration
- Rear and side entry into an easily accessible and roomy wiring compartment
- Installation made quick and easy via keyhole mounting slots
- All welded core construction made with high quality, high permeability silicon steel laminations
- Copper wound coils with high dielectric strength insulation
- Front accessible wiring compartment with high and low voltage copper lead wires or tabs
- 40 deg C maximum
