SIOUX CHIEF 525-1612 STRONG ARM W/ONE 1/2 LOCK BLOCK
MFR Part #: 525-1612
SKU #: 1153623
Brand: Tomahawk
UPC: 739236267078

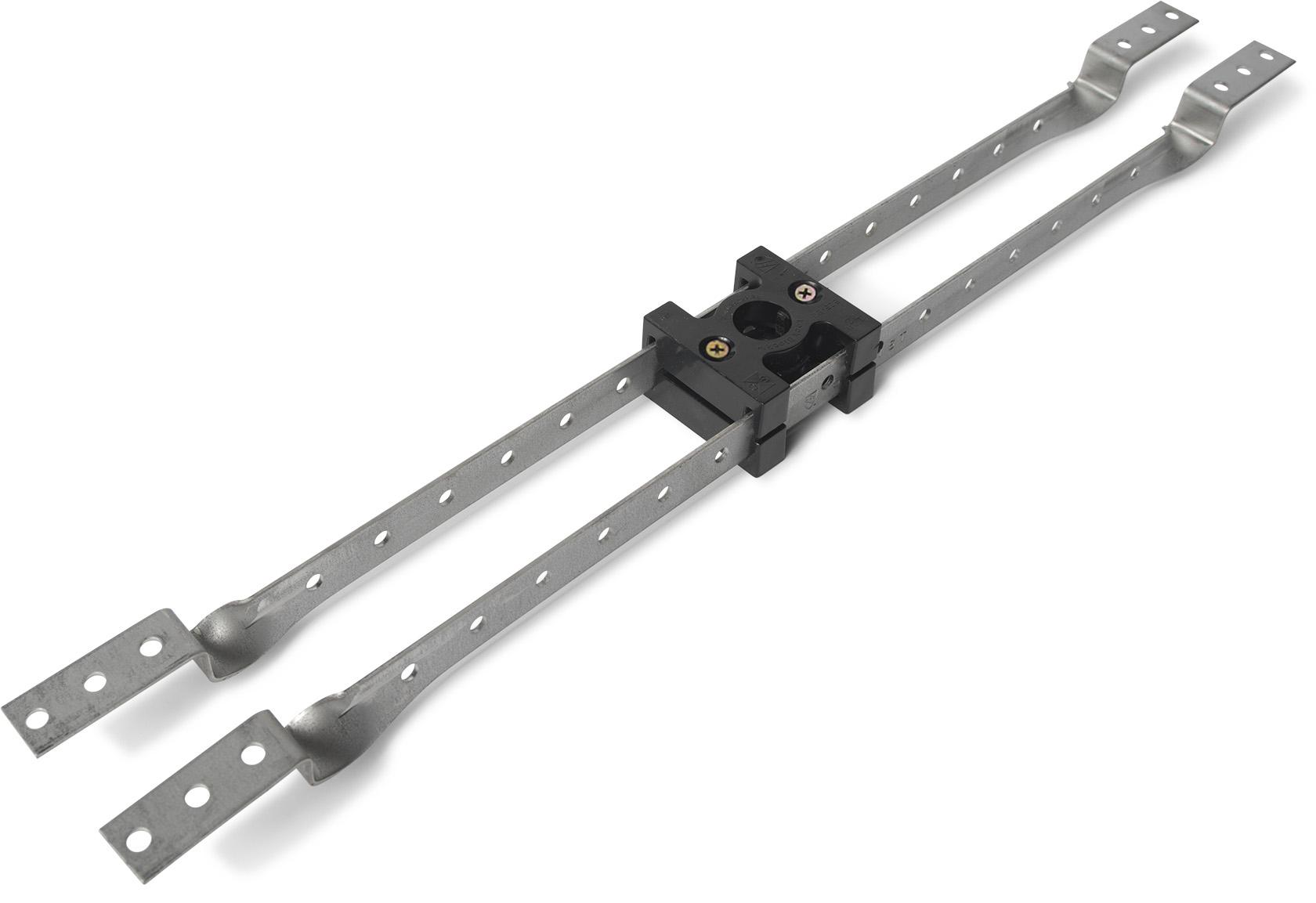

Sioux Chief StrongArm™ 525-1612 Bracket, 25 lb, Steel, Galvanized
IAPMO Listed
Product Details
Attributes
Features
Resources
Sioux Chief StrongArm™ Bracket, Series: 525, 25 lb, Steel, Galvanized, 17-1/4 in L x 5/8 in D, 140 deg F
Sioux Chief 525 series StrongArm™ with LockBlock™ bracketing system shall be used where necessary for securing CTS stub outs when penetrating a wall. Bracket shall be corrosion resistant with twisted ends to mount to the surface of a wood or metal stud wall. System shall include approved hardware. System shall include slideable, plastic block device to position and secure CTS stub out at any desired location within the stud cavity. When screws on blocks are tightened, compression of blocks prevents lateral movement on brackets and simultaneously compresses on tube to prevent stub out movement. LockBlocks™ shall be compatible with copper, CPVC, or PEX tube. System shall be IAPMO Certified.
Dimensions:17-1/4 in L x 5/8 in D
Finish:Galvanized
Load Capacity:25 lb
Material:Steel
Series:525
Temperature Rating:140 deg F
- Rigidly secure any 1/2 to 1 in CTS stub out and prevent all movement
- Twisted brackets easily mount to the face of the stud and L-bent brackets mount inside the stud cavity
- LockBlock™ compress on tube and brackets after screw are tightened
- For use with 16 in stud bay
- (1) 1/2 in standard LockBlock™
- 16 ga stainless steel
Product Details
Sioux Chief StrongArm™ Bracket, Series: 525, 25 lb, Steel, Galvanized, 17-1/4 in L x 5/8 in D, 140 deg F
Sioux Chief 525 series StrongArm™ with LockBlock™ bracketing system shall be used where necessary for securing CTS stub outs when penetrating a wall. Bracket shall be corrosion resistant with twisted ends to mount to the surface of a wood or metal stud wall. System shall include approved hardware. System shall include slideable, plastic block device to position and secure CTS stub out at any desired location within the stud cavity. When screws on blocks are tightened, compression of blocks prevents lateral movement on brackets and simultaneously compresses on tube to prevent stub out movement. LockBlocks™ shall be compatible with copper, CPVC, or PEX tube. System shall be IAPMO Certified.
Attributes
Dimensions: 17-1/4 in L x 5/8 in D
Finish: Galvanized
Load Capacity: 25 lb
Material: Steel
Series: 525
Temperature Rating: 140 deg F
Features
- Rigidly secure any 1/2 to 1 in CTS stub out and prevent all movement
- Twisted brackets easily mount to the face of the stud and L-bent brackets mount inside the stud cavity
- LockBlock™ compress on tube and brackets after screw are tightened
- For use with 16 in stud bay
- (1) 1/2 in standard LockBlock™
- 16 ga stainless steel
