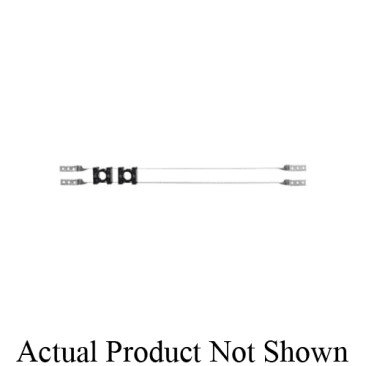

SIOUX CHIEF 525-2412 STRONG ARM W/ONE 1/2 LOCK BLOCK
MFR Part #: 525-2412
SKU #: 1153634
Brand: Tomahawk
UPC: 739236267108
Sioux Chief StrongArm™ LockBlock™ 525-2412 Bracket With (1) 1/2 in Standard LockBlock, 1/2 in Hole, 25 lb, Steel, Galvanized
Product Details
Attributes
Features
Resources
Sioux Chief StrongArm™ LockBlock™ Bracket, 1/2 in, 25 lb, Steel, Galvanized, 25-1/4 in L x 7/8 in W x 1-3/4 in H, 140 deg F
Sioux Chief 525 series StrongArm&rade; with LockBlock&rade; bracketing system shall be used where necessary for securing CTS stub outs when penetrating a wall. Bracket shall be corrosion resistant with twisted ends to mount to the surface of a wood or metal stud wall. System shall include approved hardware. System shall include slideable, plastic block device to position and secure CTS stub out at any desired location within the stud cavity. When screws on blocks are tightened, compression of blocks prevents lateral movement on brackets and simultaneously compresses on tube to prevent stub out movement. LockBlocks&rade; shall be compatible with copper, CPVC, or PEX tube. System shall be IAPMO certified.
Dimensions:25-1/4 in L x 7/8 in W x 1-3/4 in H
Finish:Galvanized
Hole Size:1/2 in
Load Capacity:25 lb
Material:Steel
Temperature Rating:140 deg F
- Rigidly secures any -1/2 to 1 in CTS stub out and prevents all movement
- LockBlocks™ are pre-assembled on a pair of brackets or available with 2-1/2 in screws to mount directly to structure
- Twisted brackets easily mount to the face of the stud and L-bent brackets mount inside the stud cavity
- LockBlocks compress on tube and brackets after screws are tightened
- For 24 in stud bays
Product Details
Sioux Chief StrongArm™ LockBlock™ Bracket, 1/2 in, 25 lb, Steel, Galvanized, 25-1/4 in L x 7/8 in W x 1-3/4 in H, 140 deg F
Sioux Chief 525 series StrongArm&rade; with LockBlock&rade; bracketing system shall be used where necessary for securing CTS stub outs when penetrating a wall. Bracket shall be corrosion resistant with twisted ends to mount to the surface of a wood or metal stud wall. System shall include approved hardware. System shall include slideable, plastic block device to position and secure CTS stub out at any desired location within the stud cavity. When screws on blocks are tightened, compression of blocks prevents lateral movement on brackets and simultaneously compresses on tube to prevent stub out movement. LockBlocks&rade; shall be compatible with copper, CPVC, or PEX tube. System shall be IAPMO certified.
Attributes
Dimensions: 25-1/4 in L x 7/8 in W x 1-3/4 in H
Finish: Galvanized
Hole Size: 1/2 in
Load Capacity: 25 lb
Material: Steel
Temperature Rating: 140 deg F
Features
- Rigidly secures any -1/2 to 1 in CTS stub out and prevents all movement
- LockBlocks™ are pre-assembled on a pair of brackets or available with 2-1/2 in screws to mount directly to structure
- Twisted brackets easily mount to the face of the stud and L-bent brackets mount inside the stud cavity
- LockBlocks compress on tube and brackets after screws are tightened
- For 24 in stud bays
