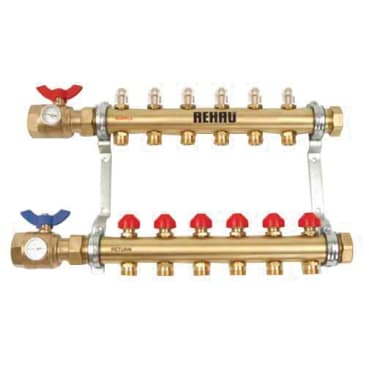

REHAU 240041-N PRO-BALANCE 1 BRASS MANIFOLD WITH 4 STATIONS
MFR Part #: 240041-100
SKU #: 3117932
Brand: REHAU®
Rehau® 240041-100 Pro-Balance Manifold Set, BSP x FNPT, Brass, 4-Outlet
Product Details
Attributes
Features
Resources
Rehau® Pro-Balance Manifold Set, BSP x FNPT Connection, 116 psi, 14 to 176 deg F, 4 Outlets, Brass, 12.5 in H x 11.81 in W x 3.75 in D
Connection Type:BSP x FNPT
Number of Outlets:4
Pressure Rating:116 psi
Temperature Rating:14 to 176 deg F
- Each manifold comes complete with visual flow agues for each circuit on supply side
- Four drywall screws and four self-tapping screws for-mounting
- Includes circuit balancing and isolation valves on return side
- Manifold circuit chart
- (2) 1 in NPT supply and return manifold isolation valves with thermometer housing, (2) mini thermometers included
- 2 air vent/boiler drain valves with manual air vent
- 2 gal/min per circuit maximum flow rate
- For use with 3/8, 1/2, 5/8 and 3/4 in Raupex pipe
Product Details
Rehau® Pro-Balance Manifold Set, BSP x FNPT Connection, 116 psi, 14 to 176 deg F, 4 Outlets, Brass, 12.5 in H x 11.81 in W x 3.75 in D
Attributes
Connection Type: BSP x FNPT
Number of Outlets: 4
Pressure Rating: 116 psi
Temperature Rating: 14 to 176 deg F
Features
- Each manifold comes complete with visual flow agues for each circuit on supply side
- Four drywall screws and four self-tapping screws for-mounting
- Includes circuit balancing and isolation valves on return side
- Manifold circuit chart
- (2) 1 in NPT supply and return manifold isolation valves with thermometer housing, (2) mini thermometers included
- 2 air vent/boiler drain valves with manual air vent
- 2 gal/min per circuit maximum flow rate
- For use with 3/8, 1/2, 5/8 and 3/4 in Raupex pipe
