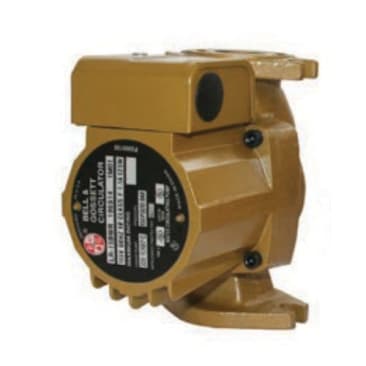

B&G 106514LF LR15BWR BRONZE CIRCULATOR 1/12 HP
Product Details
Features
Resources
Bell & Gossett Circulator Booster Pump, Low Head, Series: LR™, 37 gpm, 12 ft Maximum Head, 125 W, 115 V AC, 1.1 A, 60 Hz, 1 ph, 150 psi Maximum, 2950 rpm Motor, In-Line Mount, 225 deg F, 3-7/8 in W x 6 in D x 6-3/8 in H
The series LR is a flanged in-line system lubricated circulating pump designed specifically for quiet operation in closed loop systems. The series LR is available in cast iron body construction for hydronic heating systems or lead-free bronze body construction for potable water applications.
- Pump shall be of the horizontal system lubricated type specifically designed and guaranteed for quiet operation
- The pumps shall have a ceramic shaft supported by carbon bearings
- Motor stator to be isolated from circulating fluid through use of stainless steel can
- Motors shall be non-overloading at any point on the pump curve
- 3/4, 1, 1-1/4 and 1-1/2 in NPT flange
- Contains less than 0.25% lead content by weight on wetted surfaces
- Maintenance-free circulators
- Construction: lead free bronze pump body, Noryl™ impeller, ceramic shaft, carbon bearings
