ALLTEMP 4JJ7535 370/440V 35/7.5MFD CAPACITOR

Name: ALLTEMP 4JJ7535 370/440V 35/7.5MFD CAPACITOR
Brand: Alltemp
SKU: 1689401
Availability: OutOfStock

MFR Part #: 4JJ7535

SKU #: 1689401

Brand: Alltemp

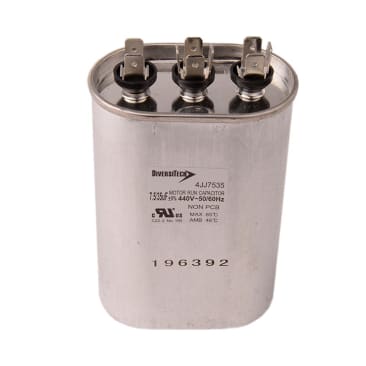

Diversitech 4JJ7535 Dual Motor Run Capacitor, 35/7.5 uF, 440 V AC, Oval

CSA 22.2 No 190|IEC 60252|UL 810

Diversitech Motor Run Capacitor, Dual, 35/7.5 uF, 440 V AC, Oval, Metal Case, 50/60 Hz, +/-5% Tolerance, 4.92 in H Case, Silver, Import

Diversitech Motor Run Capacitor, Dual, 35/7.5 uF, 440 V AC, Oval, Metal Case, 50/60 Hz, +/-5% Tolerance, 4.92 in H Case, Silver, Import

Capacitance: 35/7.5 uF

Case Material: Metal

Color: Silver

Domestic/Import: Import

Shape: Oval

Specifications: 50/60 Hz, +/-5% Tolerance, 4.92 in H Case

Type: Dual

Voltage Rating: 440 V AC

Guaranteed for 10000 hr of life under normal operating conditions
Operating life of 94% at 60000 hr
Meets 10000 AFC safety requirement per UL 810
Between terminals: Rated voltage x 1.75 VAC, 10 sec withstand voltage test
Between terminals and case: Rated voltage x 2+1000 VAC, 60 sec withstand voltage test
Maximum permissible voltage: 110% of the rated voltage
Maximum permissible current: 130% of the rated current
Oil filled, non PCB
Quick connect terminal - Faston No 250 series size
-40 to 70 deg C permissible temperature
