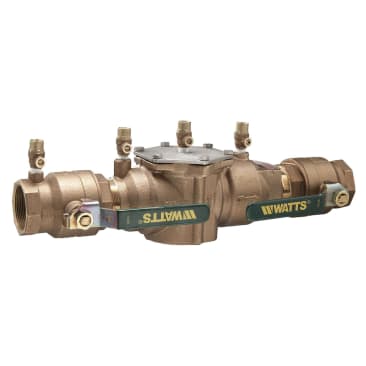

WATTS 0062681 007M2-QT 1-1/4 DOUBLE CHECK VALVE BACK FLOW PREVENTOR
MFR Part #: 0062681
SKU #: 1203726
Brand: WATTS®
UPC: 098268739091
WATTS® 0062681 007 Double Check Valve Assembly, 1-1/4 in Nominal, Quarter-Turn Ball Valve, Bronze Body
1 year Limited
(2) Positive Seating Check Modules With Captured Springs and Rubber Seat Discs, (4) Test Cocks
Non-Health Hazard
Approved By The Foundation For Cross-Connection Control And Hydraulic Research At The University Of Southern California|ASSE 1015|AWWA C510|CSA B64.5|IAPMO PS31|UPC Listed|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
Product Details
Attributes
Features
Resources
WATTS®, 0062681, Double Check Valve Assembly, Series: 007, 1-1/4 in Nominal, 175 psi Pressure, 33 to 180 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Bronze Body, 16-3/8 in L x 5 in H Dimensions
Series 007 Double Check Valve Assemblies prevent the backflow of contaminated water into the potable water supply. It consists of a bronze body construction that is easy to maintain and service. Series 007 is ideal at referenced cross-connections identified as non-health hazard applications. Check with local inspection authorities for installation requirements.
Backflow Type:Dual Check
Ball Valve/Gate Valve Type:Quarter-Turn Ball Valve
Body Material:Bronze
Connection Type:FNPT
Country Of Origin:US
Dimensions:5 in H, 16-3/8 in L x 5 in H
Inlet to Outlet Length:16-3/8 in
Lead-Free/Contains Lead:Contains Lead
Media:Water
Mounting Type:Top
Nominal Size:1-1/4 in
Pressure Rating:175 psi
Series:007, 007 Series
Temperature Rating:33 to 180 deg F, 33 to 180 deg C
Top to Inlet Center:3-5/16 in
- Bronze body for durability
- Modular compact design
- Ease of maintenance only one cover
- Top entry
- Low pressure drop
- Top mounted resilient seated test cocks
- Cast bronze construction
Product Details
WATTS®, 0062681, Double Check Valve Assembly, Series: 007, 1-1/4 in Nominal, 175 psi Pressure, 33 to 180 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Bronze Body, 16-3/8 in L x 5 in H Dimensions
Series 007 Double Check Valve Assemblies prevent the backflow of contaminated water into the potable water supply. It consists of a bronze body construction that is easy to maintain and service. Series 007 is ideal at referenced cross-connections identified as non-health hazard applications. Check with local inspection authorities for installation requirements.
Attributes
Backflow Type: Dual Check
Ball Valve/Gate Valve Type: Quarter-Turn Ball Valve
Body Material: Bronze
Connection Type: FNPT
Country Of Origin: US
Dimensions: 5 in H, 16-3/8 in L x 5 in H
Inlet to Outlet Length: 16-3/8 in
Lead-Free/Contains Lead: Contains Lead
Media: Water
Mounting Type: Top
Nominal Size: 1-1/4 in
Pressure Rating: 175 psi
Series: 007, 007 Series
Temperature Rating: 33 to 180 deg F, 33 to 180 deg C
Top to Inlet Center: 3-5/16 in
Features
- Bronze body for durability
- Modular compact design
- Ease of maintenance only one cover
- Top entry
- Low pressure drop
- Top mounted resilient seated test cocks
- Cast bronze construction
