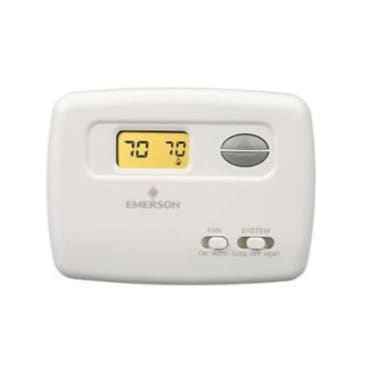

WHITE RODGERS 1F78-144 70 SERIES NON-PROGRAMMABLE DIGITAL THERMOSTAT
MFR Part #: 1F78-144
SKU #: 1688058
Brand: White-Rodgers™
White-Rodgers™ 1F78-144 70 Series 1-Stage Thermostat, Non-Programmable Thermostat, 45 to 90 deg F Control, RH, W Terminal, Import
B/O Terminals
For Residential Single Stage and Heat Pump Applications
NEC Class II
Product Details
Attributes
Features
Resources
White-Rodgers™ Thermostat, 1-Stage, Series: 70 Series, Non-Programmable Thermostat, 45 to 90 deg F Control, RH, W Terminal Designations, Heat/Off System Switching, Auto/On Fan Switching, 2 Stage, 1 Stages Heat, 1 Stages Cool, 90% Non-Condensing Humidity, 1.2 sq-in Lighted Display, 20 to 30 V AC, Battery/Hardwired Power Source, White, 5-1/8 in W x 1-1/8 in D x 3-13/16 in H Dimensions, Import
Residential single stage and heat pump applications. 70 series are the Perfect Upgrade from mechanical thermostats. Covers wall Marks Left by most mechanical thermostats the need for an Extra wall plate.
Color:White
Control Range:45 to 90 deg F
Dimensions:5-1/8 in W x 1-1/8 in D x 3-13/16 in H
Display Type:1.2 sq-in Lighted
Domestic/Import:Import
Fan Switching:Auto/On
Humidity Range:90% Non-Condensing
Number of Stages:2
Power Source:Battery/Hardwired
Series:70 Series
Stages Cool:1
Stages Heat:1
System Switching:Heat/Off
Terminal Designations:RH, W
Thermostat Type:Non-Programmable
Type:1-Stage
Voltage Rating:20 to 30 V AC
- Fossil fuel or electric heat compatible
- Large LCD with backlight
- Selectable Celsius or Fahrenheit temperature display
- Electronic accuracy
- 32 to 105 deg F ambient operating temperature
Product Details
White-Rodgers™ Thermostat, 1-Stage, Series: 70 Series, Non-Programmable Thermostat, 45 to 90 deg F Control, RH, W Terminal Designations, Heat/Off System Switching, Auto/On Fan Switching, 2 Stage, 1 Stages Heat, 1 Stages Cool, 90% Non-Condensing Humidity, 1.2 sq-in Lighted Display, 20 to 30 V AC, Battery/Hardwired Power Source, White, 5-1/8 in W x 1-1/8 in D x 3-13/16 in H Dimensions, Import
Residential single stage and heat pump applications. 70 series are the Perfect Upgrade from mechanical thermostats. Covers wall Marks Left by most mechanical thermostats the need for an Extra wall plate.
Attributes
Color: White
Control Range: 45 to 90 deg F
Dimensions: 5-1/8 in W x 1-1/8 in D x 3-13/16 in H
Display Type: 1.2 sq-in Lighted
Domestic/Import: Import
Fan Switching: Auto/On
Humidity Range: 90% Non-Condensing
Number of Stages: 2
Power Source: Battery/Hardwired
Series: 70 Series
Stages Cool: 1
Stages Heat: 1
System Switching: Heat/Off
Terminal Designations: RH, W
Thermostat Type: Non-Programmable
Type: 1-Stage
Voltage Rating: 20 to 30 V AC
Features
- Fossil fuel or electric heat compatible
- Large LCD with backlight
- Selectable Celsius or Fahrenheit temperature display
- Electronic accuracy
- 32 to 105 deg F ambient operating temperature
