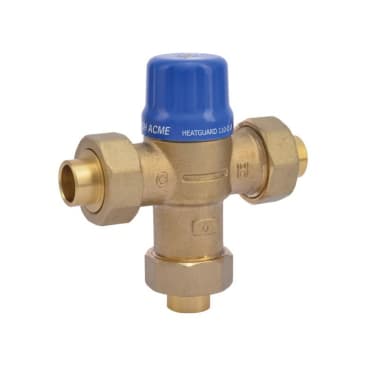

CASH ACME 24501 HG110-D 1/2 SWT MIX VLV
MFR Part #: 24501
SKU #: 1203964
Brand: RWC | Cash Acme®
Cash Acme® Heatguard® 24501 HG110-D Thermostatic Mixing Valve, 1/2 in C Inlet x 1/2 in C Outlet, 230 psi, 1 to 20 gpm, Bronze Body, Import
5 Years Limited
Commercial and Residential
ASSE 1017|1069 and 1070|CSA B125.3|IAPMO Listed|ANSI/NSF 372|ANSI/NSF 61
Product Details
Attributes
Features
Resources
Cash Acme® Heatguard® Thermostatic Mixing Valve, Series: HG110-D, 1/2 in C Inlet Connection, 1/2 in C Outlet, 230 psi, 85 to 130 deg F, 1 to 20 gpm, Bronze Body, 4.79 in L x 4.74 in H, Import
The HG110-D, a triple-listed thermostatic mixing valve, delivers water at a safe 120 deg F (49 deg C) or lower from all outlets, while allowing the water heater to be set at a germ-killing 140 deg F (60 deg C) or higher which aids in preventing the growth of legionella bacteria in the water heater. The higher tank temperature means that hot water demands can be satisfied longer. Robust, low complexity construction. Every valve is tested for performance prior to shipping. Adjustable and lockable mechanism minimizes unauthorized tampering with valve setting. Each valve is factory set and locked to a maximum 120 deg F (49 deg C). Adj. outlet temperature range: 85 to 130 deg F (29 to 54 deg C).
Flow Rate:1 to 20 gpm
Series:HG110-D
Body Material:Bronze
Dimensions:4.79 in L x 4.74 in H
Domestic/Import:Import
Inlet Connection:1/2 in C
Outlet Connection:1/2 in C
Pressure Rating:230 psi
Temperature Rating:85 to 130 deg F
- Domestic and commercial hot water distribution
- To control water temperature at the source of heat (hot water tank), point-of-use (sinks, lavatories or bath tubs) or multiple fixtures (multiple sinks or gang shower applications where bather has no access to temperature control)
- Certified for distribution and point-of-use applications: Safer hot water from all outlets
- Allows the water heater to be set at 140 deg F (60 deg C) or higher, greater effective hot water volume yields less chance of Legionella within the cylinder
- Every valve is tested for performance prior to shipping, specify and install with confidence
- Robust, low complexity construction, superior reliability, improved user safety
- Adjustable and lockable mechanism, minimizes unauthorized tampering with valve setting Factory set, locked to max 120 deg F
- 120 to 180 deg F hot/39 to 80 deg F cold temperature supply range
- Brass internal cap, stainless steel spring
- Lead free
Product Details
Cash Acme® Heatguard® Thermostatic Mixing Valve, Series: HG110-D, 1/2 in C Inlet Connection, 1/2 in C Outlet, 230 psi, 85 to 130 deg F, 1 to 20 gpm, Bronze Body, 4.79 in L x 4.74 in H, Import
The HG110-D, a triple-listed thermostatic mixing valve, delivers water at a safe 120 deg F (49 deg C) or lower from all outlets, while allowing the water heater to be set at a germ-killing 140 deg F (60 deg C) or higher which aids in preventing the growth of legionella bacteria in the water heater. The higher tank temperature means that hot water demands can be satisfied longer. Robust, low complexity construction. Every valve is tested for performance prior to shipping. Adjustable and lockable mechanism minimizes unauthorized tampering with valve setting. Each valve is factory set and locked to a maximum 120 deg F (49 deg C). Adj. outlet temperature range: 85 to 130 deg F (29 to 54 deg C).
Attributes
Flow Rate: 1 to 20 gpm
Series: HG110-D
Body Material: Bronze
Dimensions: 4.79 in L x 4.74 in H
Domestic/Import: Import
Inlet Connection: 1/2 in C
Outlet Connection: 1/2 in C
Pressure Rating: 230 psi
Temperature Rating: 85 to 130 deg F
Features
- Domestic and commercial hot water distribution
- To control water temperature at the source of heat (hot water tank), point-of-use (sinks, lavatories or bath tubs) or multiple fixtures (multiple sinks or gang shower applications where bather has no access to temperature control)
- Certified for distribution and point-of-use applications: Safer hot water from all outlets
- Allows the water heater to be set at 140 deg F (60 deg C) or higher, greater effective hot water volume yields less chance of Legionella within the cylinder
- Every valve is tested for performance prior to shipping, specify and install with confidence
- Robust, low complexity construction, superior reliability, improved user safety
- Adjustable and lockable mechanism, minimizes unauthorized tampering with valve setting Factory set, locked to max 120 deg F
- 120 to 180 deg F hot/39 to 80 deg F cold temperature supply range
- Brass internal cap, stainless steel spring
- Lead free
