FVX 8L 1 FIP RELIEF VALVE 150 PSI CASH ACME
MFR Part #: FVX-8L
SKU #: 1310484
Brand: RWC | Cash Acme®

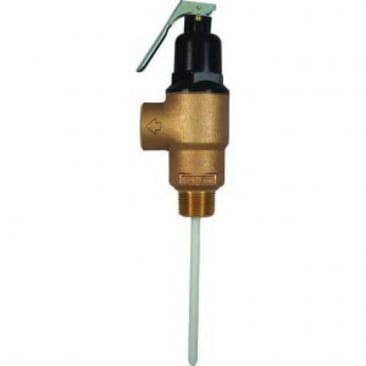

CashAcme™ FVX Series FVX-8L Temperature and Pressure Relief Valve, 1 in Nominal, FNPT, 150 psi, 210 deg F, Brass Body
For domestic and commercial hot water heaters and heating devices
ANSU Z21.22 Specified|CSA 4.4 Certified
Please contact your CSR regarding pricing
Product Details
Attributes
Features
Resources
CashAcme™ Temperature and Pressure Relief Valve, FVX Series, 1 in Nominal, FNPT Connection, 150 psi, Water Media, 4-3/8 in Top to Inlet Center, Brass Body, Silicone Seat, 210 deg F, Domestic/Import: Domestic
The FVX Series combination temperature and pressure relief valves are designed to offer high-capacity protection for domestic and commercial hot water heaters and heating devices. The FVX Series valves are fully automatic with the valves resetting after either temperature or pressure relief. The larger FVX Series valves are well suited for such commercial applications as restaurants, hospitals and laundries.
Body Material:Brass
Connection Type:FNPT
Domestic/Import:Domestic
Nominal Size:1 in
Pressure Rating:150 psi
Series:FVX Series
Temperature Rating:210 deg F
Media:Water
Seat Material:Silicone
Top to Inlet Center:4-3/8 in
- All FVX Series valves through 1-1/4 in have coated thermal elements that protect against mineral build-up
- The 1-1/2 and 2 in valves have stainless steel elements
- Handles more volume with just one relief valve
- The valves reseat after either temperature or pressure relief
Product Details
CashAcme™ Temperature and Pressure Relief Valve, FVX Series, 1 in Nominal, FNPT Connection, 150 psi, Water Media, 4-3/8 in Top to Inlet Center, Brass Body, Silicone Seat, 210 deg F, Domestic/Import: Domestic
The FVX Series combination temperature and pressure relief valves are designed to offer high-capacity protection for domestic and commercial hot water heaters and heating devices. The FVX Series valves are fully automatic with the valves resetting after either temperature or pressure relief. The larger FVX Series valves are well suited for such commercial applications as restaurants, hospitals and laundries.
Attributes
Body Material: Brass
Connection Type: FNPT
Domestic/Import: Domestic
Nominal Size: 1 in
Pressure Rating: 150 psi
Series: FVX Series
Temperature Rating: 210 deg F
Media: Water
Seat Material: Silicone
Top to Inlet Center: 4-3/8 in
Features
- All FVX Series valves through 1-1/4 in have coated thermal elements that protect against mineral build-up
- The 1-1/2 and 2 in valves have stainless steel elements
- Handles more volume with just one relief valve
- The valves reseat after either temperature or pressure relief
