JW AV75P ATMOSPHERIC 75 LP HWT
MFR Part #: AV75P
SKU #: 1289269
Brand: John Wood®

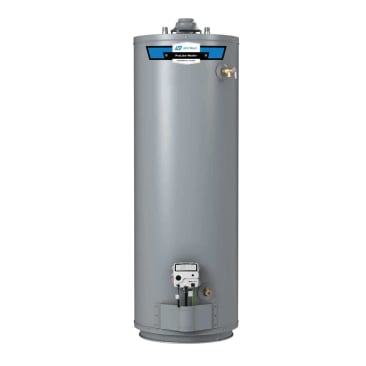

John Wood® 401 Series AV75P Commercial-Grade Gas Water Heater, 75 gal, 75100 Btu/hr, Propane Gas
6 Year Tank and Parts
Residential
CSA Certified
Product Details
Attributes
Features
Resources
John Wood® Commercial-Grade Gas Water Heater, 401 Series, 75 gal Capacity, 75100 Btu/hr, 80 gph Recovery Rate, Atmospheric Vent, Propane Gas Fuel, Piezo Electric Ignition, 26-1/2 in Dia x 61 in H, 7700 ft Altitude
Altitude:7700 ft
BTU Rating:75100 Btu/hr
Capacity:75 gal
Dimensions:26-1/2 in Dia x 61 in H
Fuel Type:Propane Gas
Ignition Type:Piezo Electric
Recovery Rate:80 gph
Series:401 Series
Vent Type:Atmospheric
- John Wood® flame Guard® safety system gas water heaters are flammable vapor ignition-resistant (FVIR) compliant water heaters with proven technology that you can trust
- ProLine® and ProLine® master model are residential water heaters with commercial-grade quality
- Turbulator dip tube reduces sediment build-up at the bottom of the tank
- Thermopile design provides robust pilot to withstand down drafts and environmental conditions
- Easy to access combustion chamber
- Piezoelectric ignitor allows for pushbutton pilot lighting
- LED indicator gives visual confirmation that the pilot is on and provides diagnostics and troubleshooting information
- Top-mounted heavy-duty anode rod for added tank protection
- 3/4 in side taps on 75 USG model for combination applications
- Easy temperature adjustments
- Robust 1/4 in pilot tubing
- Glass lining provides superior protection against tank corrosion
- The flame Guard® safety system protects the homeowner by trapping burning vapors within the water heater's combustion chamber through the exclusive "Flame Trap"
- Conveniently located T and P and drain valve for ease of installation and serviceability
Product Details
John Wood® Commercial-Grade Gas Water Heater, 401 Series, 75 gal Capacity, 75100 Btu/hr, 80 gph Recovery Rate, Atmospheric Vent, Propane Gas Fuel, Piezo Electric Ignition, 26-1/2 in Dia x 61 in H, 7700 ft Altitude
Attributes
Altitude: 7700 ft
BTU Rating: 75100 Btu/hr
Capacity: 75 gal
Dimensions: 26-1/2 in Dia x 61 in H
Fuel Type: Propane Gas
Ignition Type: Piezo Electric
Recovery Rate: 80 gph
Series: 401 Series
Vent Type: Atmospheric
Features
- John Wood® flame Guard® safety system gas water heaters are flammable vapor ignition-resistant (FVIR) compliant water heaters with proven technology that you can trust
- ProLine® and ProLine® master model are residential water heaters with commercial-grade quality
- Turbulator dip tube reduces sediment build-up at the bottom of the tank
- Thermopile design provides robust pilot to withstand down drafts and environmental conditions
- Easy to access combustion chamber
- Piezoelectric ignitor allows for pushbutton pilot lighting
- LED indicator gives visual confirmation that the pilot is on and provides diagnostics and troubleshooting information
- Top-mounted heavy-duty anode rod for added tank protection
- 3/4 in side taps on 75 USG model for combination applications
- Easy temperature adjustments
- Robust 1/4 in pilot tubing
- Glass lining provides superior protection against tank corrosion
- The flame Guard® safety system protects the homeowner by trapping burning vapors within the water heater's combustion chamber through the exclusive "Flame Trap"
- Conveniently located T and P and drain valve for ease of installation and serviceability
