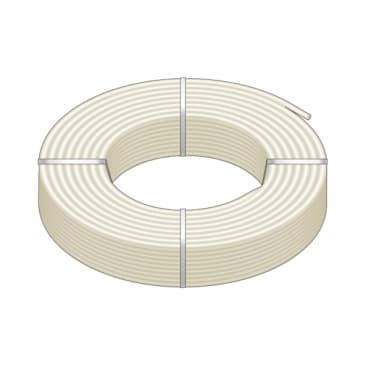

HEATLINK 94519 5/8 X 500FT O2 BARRIER PEX-A PIPE
MFR Part #: 94519
SKU #: 1138947
Brand: HeatLink®
UPC: 62799800415
HeatLink® 94519 94000 UV Stabilized Tubing, 5/8 in Nominal, 0.574 in ID x 3/4 in OD x 500 ft Coil L, 0.083 in THK Wall, Natural, Engel/Peroxide, Import
25 Years Limited
For use with hydronic heating systems
ANSI/NSF-61|ANSI/NSF-14|ANSI/UL 263|ASTM F876|ASTM F877|ASTM F1807|ASTM F1960|ASTM F2080|ASTM F2098|ASTM F2159|ASTM F2657|ASTM E84|CAN/ULC S102.2- 2007/2010|CSA B137.5|DIN 4726/9 (EVOH Oxygen Barrier)|cNSF®us-rfh-PEX 0306|NSF U.M. Code|CSA B137.5 RFH|ICC-ES|ICC-PMG|IAPMO UMC|PPI TR-4|Warnock Hersey
Product Details
Attributes
Resources
HeatLink® Tubing, UV Stabilized, Series: 94000, 5/8 in Nominal, 0.574 in Inside Dia, 3/4 in Outside Dia, 500 ft Coil Length, 0.083 in Wall Thickness, 100 psi Working, 180 deg F, Engel/Peroxide, Natural, Import
High molecular cross-linked polyethylene (PEX-a) with minimum bending radii of 6X the diameter at 68 deg F (20 deg C). Maximum operating temperature: 180 deg F at 100 psi (82 deg C at 690 kPa). Covered by a twenty-five year manufacturers limited warranty. Comes with oxygen diffusion barrier which prevents oxygen from entering the heating system through the tubing wall.
Color:Natural
Country Of Origin:Canada
Domestic/Import:Import
Inside Diameter:.574 in
Length:500 ft
Method of Manufacture:Engel/Peroxide
Nominal Size:5/8 in
Outside Diameter:3/4 in
Series:94000
Temperature Rating:180 deg F
Type:UV Stabilized
Wall Thickness:.083 in
Working Pressure:100 psi
Product Details
HeatLink® Tubing, UV Stabilized, Series: 94000, 5/8 in Nominal, 0.574 in Inside Dia, 3/4 in Outside Dia, 500 ft Coil Length, 0.083 in Wall Thickness, 100 psi Working, 180 deg F, Engel/Peroxide, Natural, Import
High molecular cross-linked polyethylene (PEX-a) with minimum bending radii of 6X the diameter at 68 deg F (20 deg C). Maximum operating temperature: 180 deg F at 100 psi (82 deg C at 690 kPa). Covered by a twenty-five year manufacturers limited warranty. Comes with oxygen diffusion barrier which prevents oxygen from entering the heating system through the tubing wall.
Attributes
Color: Natural
Country Of Origin: Canada
Domestic/Import: Import
Inside Diameter: .574 in
Length: 500 ft
Method of Manufacture: Engel/Peroxide
Nominal Size: 5/8 in
Outside Diameter: 3/4 in
Series: 94000
Temperature Rating: 180 deg F
Type: UV Stabilized
Wall Thickness: .083 in
Working Pressure: 100 psi
