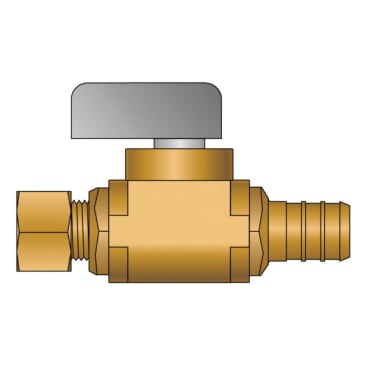

HEATLINK 23905NL 1/2INX1/4IN PEXXOD COMP LEAD FREE STRAIGHT BALL VALVE
MFR Part #: 23905NL
SKU #: 1688709
Brand: HeatLink®
UPC: 627998012671
HeatLink® 23905NL Straight Ball Valve, 1/2 x 1/4 in Nominal, PEX x OD Compression End Style, Brass Body, Import
ANSI/NSF 61|ANSI/NSF 372|ASME A112.18.1/CSA B125.1|ASTM F1807|ASTM F877|CSA Certified|IAPMO Listed|UPC Listed|UNS C69300 Eco Brass Body|PROP65: Warning: Cancer and Reproductive Harm-www.P65Warnings.ca.gov.
Product Details
Attributes
Features
Resources
HeatLink® Ball Valve, Lead Free Straight, 1/2 x 1/4 in Nominal, PEX x OD Compression, 100 psi, 180 deg F, 2.4 in Inlet to Outlet Length, 1.2 in Top to Inlet Center, Brass Body, Import
Body Material:Brass
Domestic/Import:Import
End Style:PEX x OD Compression
Inlet to Outlet Length:2.4 in
Nominal Size:1/2 x 1/4 in
Pressure Rating:100 psi
Temperature Rating:180 deg F
Top to Inlet Center:1.2 in
Type:Straight
- No lead brass (C69300-ecobrass) 1/2 in PEX x 1/4 in O.D. compression, straight ball valve
- Stainless steel press sleeves sold separately
Product Details
HeatLink® Ball Valve, Lead Free Straight, 1/2 x 1/4 in Nominal, PEX x OD Compression, 100 psi, 180 deg F, 2.4 in Inlet to Outlet Length, 1.2 in Top to Inlet Center, Brass Body, Import
Attributes
Body Material: Brass
Domestic/Import: Import
End Style: PEX x OD Compression
Inlet to Outlet Length: 2.4 in
Nominal Size: 1/2 x 1/4 in
Pressure Rating: 100 psi
Temperature Rating: 180 deg F
Top to Inlet Center: 1.2 in
Type: Straight
Features
- No lead brass (C69300-ecobrass) 1/2 in PEX x 1/4 in O.D. compression, straight ball valve
- Stainless steel press sleeves sold separately
