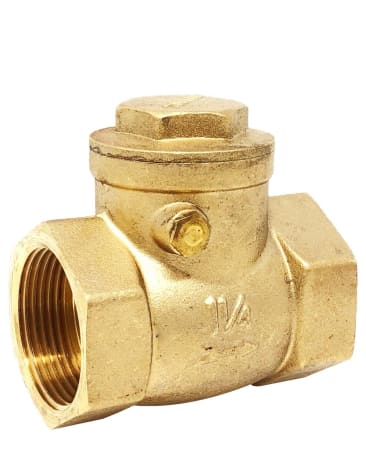

KVC NL-150T125 1-1/4 IP 200 WOG LEAD FREE BRASS SWING CHECK VALVE
MFR Part #: NL-150T125
SKU #: 3278049
Brand: KVC
KVC NL-150T125 1-1/4 IP 200 WOG LF BRS SWING CHECK VLV
Product Details
Attributes
Features
Resources
KVC Swing Check Valve T Pattern, NL-150T Series, 1 1/4 in Nominal, T Pattern, Max Working Pressure 200PSI, Working Temperature 32°F - 212°F, NTP END, Gas, Oil, Steam, Water Media, ASTM B283 C37700 Body, Brass Bonnet, Brass Disc, Fiber Washer, Brass Pin, Brass Bolt, ØD 21mm, L 75.00mm, H 53.50mm
Height:53.5 mm
Length:75 mm
Maximum Working Pressure:200 PSI
Maximum Working Temperature:212 F
Minimum Working Temperature:32 F
ØD:21 mm
Size:1 1/4 in
- Packing Nut, O-RING & Packing On The Stem Seal
- Valves Conform to MSS SP-80, TYPE 2
- Threaded Ends per ANSI B1.20.1
Product Details
KVC Swing Check Valve T Pattern, NL-150T Series, 1 1/4 in Nominal, T Pattern, Max Working Pressure 200PSI, Working Temperature 32°F - 212°F, NTP END, Gas, Oil, Steam, Water Media, ASTM B283 C37700 Body, Brass Bonnet, Brass Disc, Fiber Washer, Brass Pin, Brass Bolt, ØD 21mm, L 75.00mm, H 53.50mm
Attributes
Height: 53.5 mm
Length: 75 mm
Maximum Working Pressure: 200 PSI
Maximum Working Temperature: 212 F
Minimum Working Temperature: 32 F
ØD: 21 mm
Size: 1 1/4 in
Features
- Packing Nut, O-RING & Packing On The Stem Seal
- Valves Conform to MSS SP-80, TYPE 2
- Threaded Ends per ANSI B1.20.1
