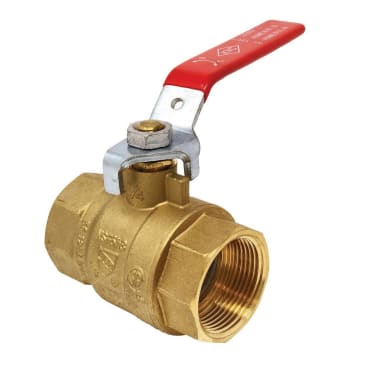

KVC NL-100T0300 3 IP BRASS BALL VLV LF 600 WOG

Name: KVC NL-100T0300 3 IP BRASS BALL VLV LF 600 WOG
Brand: KVC
SKU: 3253941
Availability: OutOfStock

MFR Part #: NL-100T300

SKU #: 3253941

Brand: KVC

UPC: 606314606961

KVC NL-100T Series NL-100T300 Ball Valve, 3 in, NPT, Brass, 600 psi

Product Details
Attributes
Features
Resources

KVC Ball Valve, NL-100T Series, 3 in Nominal, NPT Connection, Full Port, 600 psi, Gas, Oil, Water Media, Manual Actuator, 6.14 in Inlet to Outlet Length, 4.58 in Top to Inlet Center, 2.89 in Opening, Handle Operator, 445.44 Cv Flow Coefficient (Cv), Brass Body, PTFE Seat, Stainless Steel Stem, PTFE Packing, Iron Handle, Stainless Steel Ball, NBR Softgoods, Lead-Free, -20 to 300 deg F

Product Details

KVC Ball Valve, NL-100T Series, 3 in Nominal, NPT Connection, Full Port, 600 psi, Gas, Oil, Water Media, Manual Actuator, 6.14 in Inlet to Outlet Length, 4.58 in Top to Inlet Center, 2.89 in Opening, Handle Operator, 445.44 Cv Flow Coefficient (Cv), Brass Body, PTFE Seat, Stainless Steel Stem, PTFE Packing, Iron Handle, Stainless Steel Ball, NBR Softgoods, Lead-Free, -20 to 300 deg F

Attributes

Nominal Size: 3 in

Opening Size: 2.89 in

Features

Blowout-proof stem
Low operating torques
Hard chromium-plated solid brass ball
Fast 1/4-turn for open/close operation
Two adjustable packing glands
Two-piece body

Resources

Specification Sheet
