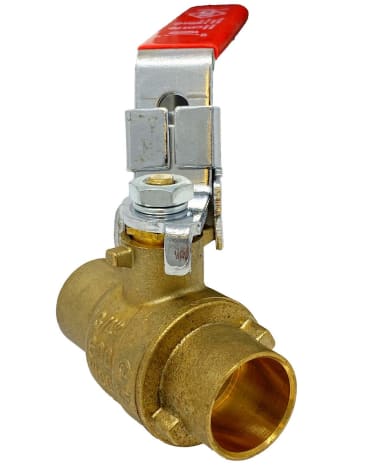

KVC NL-100C0250 2-1/2 CXC BRASS BALL VLV LF 600 WOG

Name: KVC NL-100C0250 2-1/2 CXC BRASS BALL VLV LF 600 WOG
Brand: KVC
SKU: 3253943
Availability: OutOfStock

MFR Part #: NL-100C250

SKU #: 3253943

Brand: KVC

UPC: 606314607043

KVC NL-100C Series NL-100C250 Ball Valve, 2-1/2 in, Compression, Brass, 600 psi

Product Details
Attributes
Features
Resources

KVC Ball Valve, NL-100C Series, 2-1/2 in Nominal, Compression Connection, Full Port, 600 psi, Gas, Oil, Water Media, Manual Actuator, 6.42 in Inlet to Outlet Length, 4-1/4 in Top to Inlet Center, 2.52 in Opening, Handle Operator, 338.43 Cv Flow Coefficient (Cv), Brass Body, PTFE Seat, Stainless Steel Stem, PTFE Packing, Iron Handle, Stainless Steel Ball, FKM/NBR/PTFE Softgoods, Lead-Free, -20 to 300 deg F

Product Details

KVC Ball Valve, NL-100C Series, 2-1/2 in Nominal, Compression Connection, Full Port, 600 psi, Gas, Oil, Water Media, Manual Actuator, 6.42 in Inlet to Outlet Length, 4-1/4 in Top to Inlet Center, 2.52 in Opening, Handle Operator, 338.43 Cv Flow Coefficient (Cv), Brass Body, PTFE Seat, Stainless Steel Stem, PTFE Packing, Iron Handle, Stainless Steel Ball, FKM/NBR/PTFE Softgoods, Lead-Free, -20 to 300 deg F

Attributes

Nominal Size: 2-1/2 in

Opening Size: 2.52 in

Features

Dezincification-resistant (DZR) lead-free brass material
Solder joint conform ASME B16.22
Forged brass body
Blowout-proof stem design
Packing nut, O-ring and packing on the stem seal
Handle with vinyl grip

Resources

Specification Sheet
