VICTAULIC C020107GE0 2-107H QUICKVIC RGD CPL F/ST EHP VP GLV
MFR Part #: 107--2IN-EHP-GLV
SKU #: 3107610
Brand: Victaulic®
UPC: 688304119613

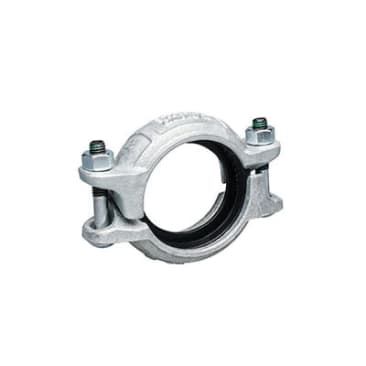

Victaulic® 107--2IN-EHP-GLV 107H QuickVic Rigid Coupling, 2 in Nominal, Grooved End Style, Ductile Iron, Hot Dipped Galvanized, Import
ASTM A536 Grade 65-45-12 | C/US UL Listed | FM Approved | CTP Approved
Product Details
Attributes
Features
Resources
Victaulic® QuickVic Rigid Coupling, Series: 107H, 2 in Nominal, Grooved, 1.97 in Thickness, 5-3/4 in Length, 750 psi, Ductile Iron, Hot Dipped Galvanized, -30 to 250 deg F, Import
Nominal Size:2 in
Domestic/Import:Import
End Style:Grooved
Finish:Hot Dipped Galvanized
Pressure Rating:750 psi
Series:107H
Temperature Rating:-30 to 250 deg F
- Accommodates pressures ranging from full vacuum (29.9 in Hg/760 mm Hg) up to 750 psi/5171 kPa
- Working pressure dependent on material, wall thickness and size of pipe
- Joins carbon steel and/or stainless steel pipe
- Provides a rigid pipe joint designed to restrict axial or angular movement
- 2-3/8 in OD actual
- 0.15 in allowable pipe end separation
- (2) 3/8 x 2-1/2 in bolt/nut
- 4.37 in OD body
Product Details
Victaulic® QuickVic Rigid Coupling, Series: 107H, 2 in Nominal, Grooved, 1.97 in Thickness, 5-3/4 in Length, 750 psi, Ductile Iron, Hot Dipped Galvanized, -30 to 250 deg F, Import
Attributes
Nominal Size: 2 in
Domestic/Import: Import
End Style: Grooved
Finish: Hot Dipped Galvanized
Pressure Rating: 750 psi
Series: 107H
Temperature Rating: -30 to 250 deg F
Features
- Accommodates pressures ranging from full vacuum (29.9 in Hg/760 mm Hg) up to 750 psi/5171 kPa
- Working pressure dependent on material, wall thickness and size of pipe
- Joins carbon steel and/or stainless steel pipe
- Provides a rigid pipe joint designed to restrict axial or angular movement
- 2-3/8 in OD actual
- 0.15 in allowable pipe end separation
- (2) 3/8 x 2-1/2 in bolt/nut
- 4.37 in OD body
