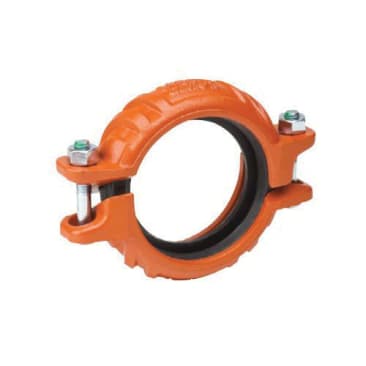

VICTAULIC C024107PE0 2-1/2-107H QUICKVIC RGD CPL F/ST T PNT
MFR Part #: 107-2-1/2-T-PNT
SKU #: 3107617
Brand: Victaulic®
UPC: 688304376870
Please note this item is discontinued (order fulfillment will depend on stock availability): Victaulic® 107-2-1/2-T-PNT 107H QuickVic Rigid Coupling, 2-1/2 in Nominal, Grooved End Style, Ductile Iron, Enamel Coated, Import
ASTM A536 Grade 65-45-12 | C/US UL Listed | FM Approved | CTP Approved
Product Details
Attributes
Features
Resources
Victaulic® QuickVic Rigid Coupling, Series: 107H, 2-1/2 in Nominal, Grooved, 1.97 in Thickness, 6.26 in Length, 750 psi, Ductile Iron, Enamel Coated, Orange, -20 to 180 deg F, Import
Nominal Size:2-1/2 in
Finish:Enamel Coated
- Accommodates pressures ranging from full vacuum (29.9 in Hg/760 mm Hg) up to 750 psi/5171 kPa
- Working pressure dependent on material, wall thickness and size of pipe
- Joins carbon steel and/or stainless steel pipe
- Provides a rigid pipe joint designed to restrict axial or angular movement
- 2-7/8 in OD actual
- 0.15 in allowable pipe end separation
- (2) 3/8 x 2-1/2 in bolt/nut
- 4.37 in OD body
Product Details
Victaulic® QuickVic Rigid Coupling, Series: 107H, 2-1/2 in Nominal, Grooved, 1.97 in Thickness, 6.26 in Length, 750 psi, Ductile Iron, Enamel Coated, Orange, -20 to 180 deg F, Import
Attributes
Nominal Size: 2-1/2 in
Finish: Enamel Coated
Features
- Accommodates pressures ranging from full vacuum (29.9 in Hg/760 mm Hg) up to 750 psi/5171 kPa
- Working pressure dependent on material, wall thickness and size of pipe
- Joins carbon steel and/or stainless steel pipe
- Provides a rigid pipe joint designed to restrict axial or angular movement
- 2-7/8 in OD actual
- 0.15 in allowable pipe end separation
- (2) 3/8 x 2-1/2 in bolt/nut
- 4.37 in OD body
