VICTAULIC C120107PE0 12 107H QUICKVIC CLMP F/STL VP PNT
MFR Part #: L120107PEN
SKU #: 3237718
Brand: Victaulic®
UPC: 8834131620

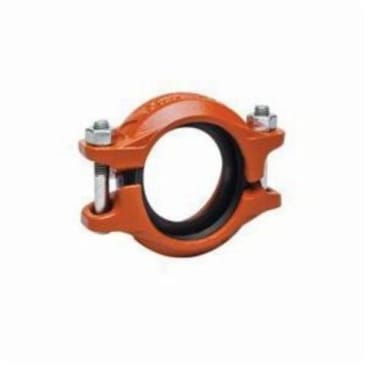

Victaulic® QuickVic™ L120107PEN 107N Pre-Assembled Rigid Coupling, 12 in Nominal, Grooved End Style, Ductile Iron, Orange Enamel
ASTM A536 Grade 65-45-12 | cULus Listed | CTP/FM Approved | LPCB | VDS
Product Details
Attributes
Features
Resources
Victaulic® QuickVic™ Rigid Coupling, Pre-Assembled, Series: 107N, Fitting/Connector Type: Coupling, 12 in Nominal, Grooved, 18.97 in Length, 750 psi, Ductile Iron, Orange Enamel, 12-3/4 in OD x 2.71 in W
Fitting Type:Coupling
Nominal Size:12 in
End Style:Grooved
Finish:Orange Enamel
Pressure Rating:750 psi
Series:107N
Type:Pre-Assembled
- Accommodates pressures ranging from full vacuum (29.9 in Hg/760 mm Hg) up to 750 psi/5171 kPa
- Joins carbon steel and stainless steel pipe
- Provides a rigid pipe joint designed to restrict axial or angular movement
- Working pressure dependent on material, wall thickness and size of pipe
- Operating temperature dependent on gasket selection from section 3.0
- 0.2 in allowable pipe end separation, (2) 7/8 X 6-1/2 in bolt/nut, 15.61 in body outside diameter
- EPDM gasket
- Carbon steel bolts/nuts
Product Details
Victaulic® QuickVic™ Rigid Coupling, Pre-Assembled, Series: 107N, Fitting/Connector Type: Coupling, 12 in Nominal, Grooved, 18.97 in Length, 750 psi, Ductile Iron, Orange Enamel, 12-3/4 in OD x 2.71 in W
Attributes
Fitting Type: Coupling
Nominal Size: 12 in
End Style: Grooved
Finish: Orange Enamel
Pressure Rating: 750 psi
Series: 107N
Type: Pre-Assembled
Features
- Accommodates pressures ranging from full vacuum (29.9 in Hg/760 mm Hg) up to 750 psi/5171 kPa
- Joins carbon steel and stainless steel pipe
- Provides a rigid pipe joint designed to restrict axial or angular movement
- Working pressure dependent on material, wall thickness and size of pipe
- Operating temperature dependent on gasket selection from section 3.0
- 0.2 in allowable pipe end separation, (2) 7/8 X 6-1/2 in bolt/nut, 15.61 in body outside diameter
- EPDM gasket
- Carbon steel bolts/nuts
