VICTAULIC L020177PEN 2 QUICKVIC FLEX CPLG 177 F/STL EHP PNT
MFR Part #: L020177PE0
SKU #: 3096371
Brand: Victaulic®
UPC: 688304463006

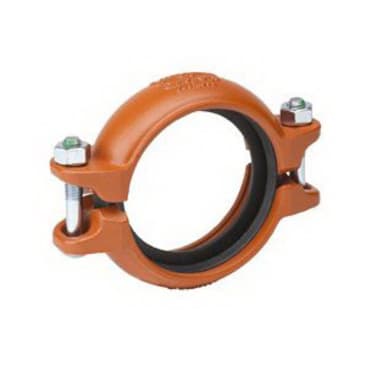

Victaulic® QuickVic™ L020177PE0 Flexible Pipe Coupling With Gasket, 2 in Nominal, Grooved End Style, Ductile Iron, Orange Enamel
cULus Listed | Ductile Iron Conforming to ASTM A-536 | Grade 65-45-12 | FM Approved
Product Details
Attributes
Features
Resources
Victaulic® QuickVic™ Pipe Coupling, Flexible, Series: 177, Fitting/Connector Type: Coupling, 2 in Nominal, Grooved, Ductile Iron, Orange Enamel, 2-3/8 in OD
Fitting Type:Coupling
Nominal Size:2 in
End Style:Grooved
Finish:Orange Enamel
Series:177
Type:Flexible
- Grade EHP EPDM gasket
- For use with steel pipes
- 3.87 in Dia x 5.59 in L pre-assembled, 3.56 in Dia x 5.39 in L x 2.05 in W joint assembled
- The Style 177 flexible coupling can accommodate pressures ranging from full vacuum (29.9 in Hg/760 mm Hg) up to 1000 psi/6900 kPa
- The coupling's maximum pressure rating will depend on the diameter and wall thickness of the pipe
- Sizes 2-4 in/50-100 mm may be used to join 304/304L and 316/316L Schedule 10 stainless steel pipe from full vacuum (29.9 in Hg/760 mm Hg) to a maximum rated working pressure of 300 psi/2065 kPa
- Bolts/nuts: Heat-treated plated carbon steel, trackhead meeting the physical and chemical requirements of ASTM A-449 and physical requirements of ASTM A-183
Product Details
Victaulic® QuickVic™ Pipe Coupling, Flexible, Series: 177, Fitting/Connector Type: Coupling, 2 in Nominal, Grooved, Ductile Iron, Orange Enamel, 2-3/8 in OD
Attributes
Fitting Type: Coupling
Nominal Size: 2 in
End Style: Grooved
Finish: Orange Enamel
Series: 177
Type: Flexible
Features
- Grade EHP EPDM gasket
- For use with steel pipes
- 3.87 in Dia x 5.59 in L pre-assembled, 3.56 in Dia x 5.39 in L x 2.05 in W joint assembled
- The Style 177 flexible coupling can accommodate pressures ranging from full vacuum (29.9 in Hg/760 mm Hg) up to 1000 psi/6900 kPa
- The coupling's maximum pressure rating will depend on the diameter and wall thickness of the pipe
- Sizes 2-4 in/50-100 mm may be used to join 304/304L and 316/316L Schedule 10 stainless steel pipe from full vacuum (29.9 in Hg/760 mm Hg) to a maximum rated working pressure of 300 psi/2065 kPa
- Bolts/nuts: Heat-treated plated carbon steel, trackhead meeting the physical and chemical requirements of ASTM A-449 and physical requirements of ASTM A-183
