VICTAULIC WG81731PE6 14X10 SCT DIF W731I AGSXSTD E ANSI PNT
Product Details
Attributes
Features
Resources

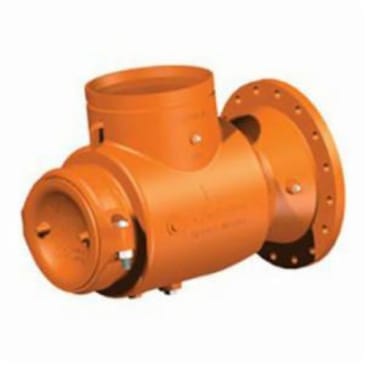

Victaulic® AGS™ Suction Diffuser, Series: W731I, 14 x 10 in Nominal, Flanged x Groove End Style, 300 psi Pressure, ANSI 150 lb Pressure Class, 29 in Inlet to Outlet Length, 14.4 in Top to Inlet Center, Ductile Iron
The Series W731-D AGS Suction Diffuser provides optimum flow conditions at the inlet side of the pump. Oversize body provides improved flow patterns around and through the basket. The larger debris pocket keeps any debris out of the flow path below the basket.
- Grade E FlushSeal® EPDM gasket
- Allows building up at a 90 angle from the pump saving valuable space in the mechanical room while still protecting the pump against cavitation
- Flanges may be machined to match most global (ANSI, DIN, GB, JIS, and AS-E) flange bolt hole patterns within the diffuser pressure rating
- Warning: Always depressurize and drain system before disassembly
- Failure to do so could result in serious personal injury, property damage, joint leakage or joint separation
Product Details
Victaulic® AGS™ Suction Diffuser, Series: W731I, 14 x 10 in Nominal, Flanged x Groove End Style, 300 psi Pressure, ANSI 150 lb Pressure Class, 29 in Inlet to Outlet Length, 14.4 in Top to Inlet Center, Ductile Iron
The Series W731-D AGS Suction Diffuser provides optimum flow conditions at the inlet side of the pump. Oversize body provides improved flow patterns around and through the basket. The larger debris pocket keeps any debris out of the flow path below the basket.
Attributes
Features
- Grade E FlushSeal® EPDM gasket
- Allows building up at a 90 angle from the pump saving valuable space in the mechanical room while still protecting the pump against cavitation
- Flanges may be machined to match most global (ANSI, DIN, GB, JIS, and AS-E) flange bolt hole patterns within the diffuser pressure rating
- Warning: Always depressurize and drain system before disassembly
- Failure to do so could result in serious personal injury, property damage, joint leakage or joint separation
