VICTAULIC C020732PE0 2 WYE STN 732 E ORG STD MESH VIC-STRNR
Product Details
Attributes
Features
Resources

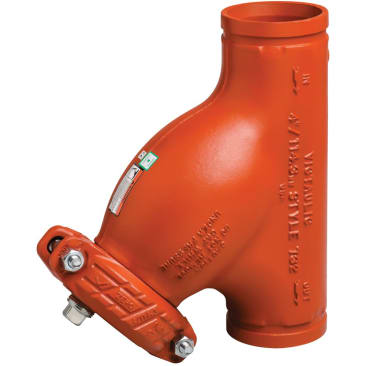

Victaulic® Vic-Strainer® Wye Strainer, Series: 732, 2 in Nominal, 9-3/4 in Overall Length, 1/2 in NPT Blow-Off, EPDM, Ductile Iron Body, Orange Enamel, Grade 65-45-15
Series 732 Vic-Strainer provides straight through flow for lower pressure drop. Installs with two Victaulic couplings. Series 732 strainers range in size from 2 to 12 in/50 to 300mm. All sizes are rated to 300psi/2065kPa maximum working pressure. A factory installed Blow Down Drain Valve is available upon request, however this option is only offered for limited sizes of the Series 732*. The blow-down valve has a hose connection capable of piping system water to a drain when servicing Air Handling Units. Durable 304 stainless perforated metal basket, 0.062 in Dia holes for 2 to 3 in/50 to 80mm sizes; 0.125 in Dia holes for 4 to 12 in/100 to 300mm sizes standard.
- Provides straight-through flow for lower pressure drop
- Pressures up to 300 psi
Product Details
Victaulic® Vic-Strainer® Wye Strainer, Series: 732, 2 in Nominal, 9-3/4 in Overall Length, 1/2 in NPT Blow-Off, EPDM, Ductile Iron Body, Orange Enamel, Grade 65-45-15
Series 732 Vic-Strainer provides straight through flow for lower pressure drop. Installs with two Victaulic couplings. Series 732 strainers range in size from 2 to 12 in/50 to 300mm. All sizes are rated to 300psi/2065kPa maximum working pressure. A factory installed Blow Down Drain Valve is available upon request, however this option is only offered for limited sizes of the Series 732*. The blow-down valve has a hose connection capable of piping system water to a drain when servicing Air Handling Units. Durable 304 stainless perforated metal basket, 0.062 in Dia holes for 2 to 3 in/50 to 80mm sizes; 0.125 in Dia holes for 4 to 12 in/100 to 300mm sizes standard.
Attributes
Features
- Provides straight-through flow for lower pressure drop
- Pressures up to 300 psi
