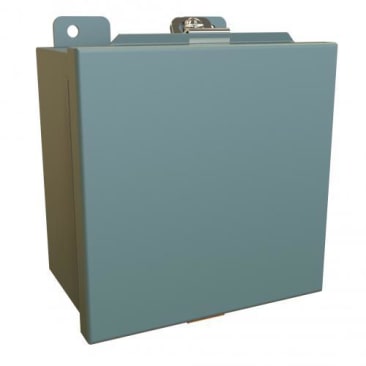

HAMMOND 1414N4PHE NEMA 4 ENCLOSURE C/W BACKPAN
MFR Part #: 1414N4PHE
SKU #: 3164123
Brand: Hammond®
UPC: 62398034540
Hammond® 1414N4PHE Junction Box With Panel, 6 in H x 6 in W x 4 in D, Continuous Hinged Cover, NEMA 3R/4/13 NEMA Rating, Mild Steel
1 Year
For use as instrument enclosures, electric, hydraulic or pneumatic control housings and electrical junction boxes or terminal wiring enclosures
CSA Certified | CE Marking | IEC 60529 | RoHS Compliant | UL 508A
Product Details
Attributes
Features
Resources
Hammond® Junction Box, Series: 1414 N4 PH Series, 6 in Height, 6 in Width, 4 in Depth, NEMA 3R/4/13 NEMA Rating, Continuous Hinged Cover, 4.88 in W x 4.88 in H Panel, 144 cu-in Capacity, Wall Mounting, Mild Steel, Powder Coated, Gray
Finish:Powder Coated
- Body formed from 16 or 14 ga steel
- Covers are formed from 14 ga steel
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Welded brackets provide for enclosure mounting
- Continuous hinged cover is secured with stainless steel clamps and screws
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin
- Seamless poured-in place gasket
- Internal threaded weld studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides protection where equipment may be hosed down or otherwise be very wet or in outdoor applications for full weather protection
Product Details
Hammond® Junction Box, Series: 1414 N4 PH Series, 6 in Height, 6 in Width, 4 in Depth, NEMA 3R/4/13 NEMA Rating, Continuous Hinged Cover, 4.88 in W x 4.88 in H Panel, 144 cu-in Capacity, Wall Mounting, Mild Steel, Powder Coated, Gray
Attributes
Finish: Powder Coated
Features
- Body formed from 16 or 14 ga steel
- Covers are formed from 14 ga steel
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Welded brackets provide for enclosure mounting
- Continuous hinged cover is secured with stainless steel clamps and screws
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin
- Seamless poured-in place gasket
- Internal threaded weld studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides protection where equipment may be hosed down or otherwise be very wet or in outdoor applications for full weather protection
