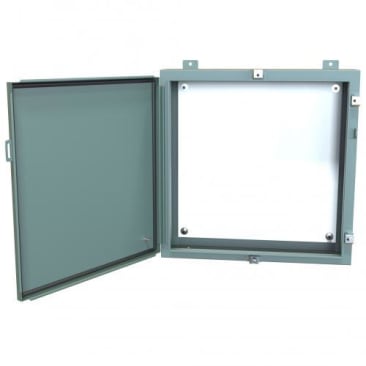

HAMMOND 1418N4J6 NEMA 4/12 24X24X6 HINGED ENCLSR W/BACKPAN
MFR Part #: 1418N4J6
SKU #: 3231523
Brand: Hammond®
UPC: 62398038030
Hammond® 1418N4J6 Enclosure With Inner Panel, 24 in W x 6 in D x 24 in H, NEMA 3R/4/12/13/IP66, 14 ga Mild Steel
1 Year
Instrument Enclosures, Electric, Hydraulic/Pneumatic Control Housings and Electrical Junction Boxes/Terminal Wiring Enclosures
CSA Certified | CE Certified | JIC EGP-1-1967 | IEC 60529 | RoHS Compliant | UL 508A
Product Details
Attributes
Features
Resources
Hammond® Enclosure, Series: 1418 N4, 24 in Width, 6 in Depth, 24 in Height, NEMA 3R/4/12/13/IP66, Hinged Cover, 21 in L x 21 in W Panel, Lock: Padlock, 3456 cu-in, Wall Mount, 14 ga Mild Steel, Powder Coated, Gray
Finish:Powder Coated
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Door and body stiffeners are provided in larger enclosures for extra rigidity
- Welded brackets provide for enclosure mounting
- Formed lip on door and enclosure excludes flowing liquid and contaminants
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin
- Door is secured with easily operated stainless steel clamps
- Provision for padlocking
- Seamless poured in place gasket
- Collar studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- A literature pocket is provided for the inside of the door
- Provides protection where equipment may be hosed down or otherwise be very wet or in outdoor applications for full weather protection
Product Details
Hammond® Enclosure, Series: 1418 N4, 24 in Width, 6 in Depth, 24 in Height, NEMA 3R/4/12/13/IP66, Hinged Cover, 21 in L x 21 in W Panel, Lock: Padlock, 3456 cu-in, Wall Mount, 14 ga Mild Steel, Powder Coated, Gray
Attributes
Finish: Powder Coated
Features
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Door and body stiffeners are provided in larger enclosures for extra rigidity
- Welded brackets provide for enclosure mounting
- Formed lip on door and enclosure excludes flowing liquid and contaminants
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin
- Door is secured with easily operated stainless steel clamps
- Provision for padlocking
- Seamless poured in place gasket
- Collar studs are provided for mounting inner panels
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- A literature pocket is provided for the inside of the door
- Provides protection where equipment may be hosed down or otherwise be very wet or in outdoor applications for full weather protection
