HAMMOND 1436B ENCL. 12/13 SCREW COVER 5.75X3.25X2.75 40720
MFR Part #: 1436B
SKU #: 3097645
Brand: Hammond®
UPC: 62398040720

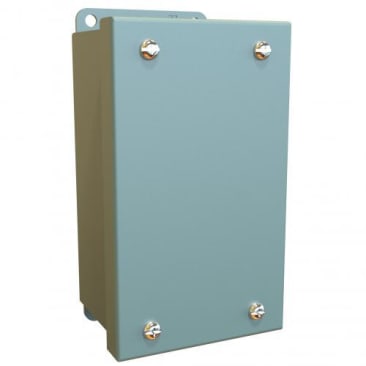

Hammond® 1436B Standard Depth Junction Box, 5-3/4 in H x 3-1/4 in W x 2-3/4 in D, Lift-Off Cover, NEMA 12/13 NEMA Rating, Mild Steel
1 Year
For use as instrument enclosures and electrical junction boxes or terminal wiring enclosures
CSA Certified | CE Marking | IEC 60529 | RoHS Compliant | UL 508A
Product Details
Attributes
Features
Resources
Hammond® Junction Box, Standard Depth, Series: 1436/1438 Series, 5-3/4 in Height, 3-1/4 in Width, 2-3/4 in Depth, NEMA 12/13 NEMA Rating, Lift-Off Cover, 51.39 cu-in Capacity, Wall Mounting, Mild Steel, Powder Coated, Gray
Finish:Powder Coated
- Formed from 14 ga steel
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Welded brackets provide for enclosure mounting
- Lift off cover is secured with captive, plated steel screws and supported on internal hinges
- Cover screws fasten into threaded, sealed wells
- Oil-resistant gaskets are permanently secured
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides a degree of protection from falling dirt, dust, oil and water
Product Details
Hammond® Junction Box, Standard Depth, Series: 1436/1438 Series, 5-3/4 in Height, 3-1/4 in Width, 2-3/4 in Depth, NEMA 12/13 NEMA Rating, Lift-Off Cover, 51.39 cu-in Capacity, Wall Mounting, Mild Steel, Powder Coated, Gray
Attributes
Finish: Powder Coated
Features
- Formed from 14 ga steel
- Smooth, continuously welded seams without knockouts, cutouts or holes
- Welded brackets provide for enclosure mounting
- Lift off cover is secured with captive, plated steel screws and supported on internal hinges
- Cover screws fasten into threaded, sealed wells
- Oil-resistant gaskets are permanently secured
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure
- Provides a degree of protection from falling dirt, dust, oil and water
