HAMMOND C3R12124ESCNK NEMA 3R J-BOX SCREW COVER 12X12X4
MFR Part #: C3R12124ESCNK
SKU #: 3151369
Brand: Hammond®
UPC: 62398013355

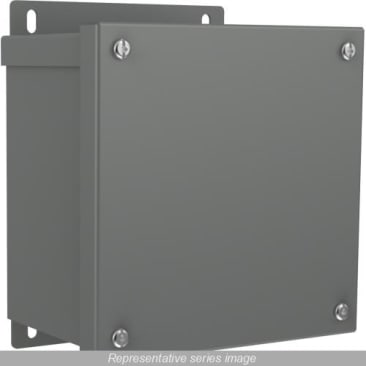

Hammond® C3R12124ESCNK Junction Box, 12 in H x 12 in W x 4 in D, Screw Cover, NEMA 3R/IP24 NEMA Rating, 16/14 ga Galvanized Steel
1 Year
Used to provide protection against rain, sleet, snow and dripping water
CSA Certified | IEC 60529 | UL 50 | RoHS Compliant
Product Details
Attributes
Features
Resources
Hammond® Junction Box, Series: C3RESCNK, 12 in Height, 12 in Width, 4 in Depth, NEMA 3R/IP24 NEMA Rating, Screw Cover, Wall Mounting, 16/14 ga Galvanized Steel, Painted/Powder Coated, ANSI 61 Gray
Finish:Painted/Powder Coated
- Drip shield top and seam-free sides, front and back
- Slip-on removable cover fastened with plated steel screws
- External mounting feet
- Oil resistant gaskets are permanently secured
- A bonding stud is provided on the door and a grounding stud is provided in the box
Product Details
Hammond® Junction Box, Series: C3RESCNK, 12 in Height, 12 in Width, 4 in Depth, NEMA 3R/IP24 NEMA Rating, Screw Cover, Wall Mounting, 16/14 ga Galvanized Steel, Painted/Powder Coated, ANSI 61 Gray
Attributes
Finish: Painted/Powder Coated
Features
- Drip shield top and seam-free sides, front and back
- Slip-on removable cover fastened with plated steel screws
- External mounting feet
- Oil resistant gaskets are permanently secured
- A bonding stud is provided on the door and a grounding stud is provided in the box
