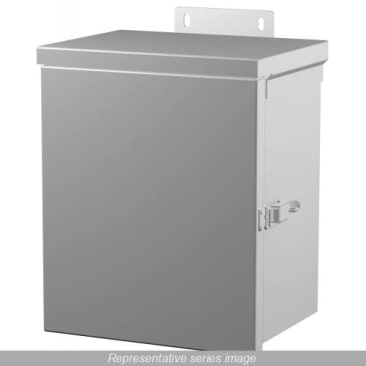

HAMMOND C3R1086HCR 10X8X6 3R HINGE COVER ENCLOSURE
MFR Part #: C3R1086HCR
SKU #: 3065121
Brand: Hammond®
UPC: 62398036186
Hammond® C3R1086HCR Junction Box, 10 in H x 8 in W x 6 in D, Hinged Cover, NEMA 3R/IP24 NEMA Rating, 16 ga Galvanized Steel
1 Year
Used to provide protection against rain, sleet, snow and dripping water
CSA Certified | IEC 60529 | UL 50 | RoHS Compliant
Product Details
Attributes
Features
Resources
Hammond® Junction Box, Series: C3R HCR SM, 10 in Height, 8 in Width, 6 in Depth, NEMA 3R/IP24 NEMA Rating, Hinged Cover, 8-1/4 in H x 6-1/4 in W Panel, Lock: Padlock, Knockout Cable Entry, 480 cu-in Capacity, Wall Mounting, 16 ga Galvanized Steel, Painted/Powder Coated, ANSI 61 Gray
Finish:Painted/Powder Coated
- Drip shield top and seam-free sides, front and back
- Galvanized steel hinge has stainless steel pin
- Provisions for padlocking on zinc plated draw pull catch
- Easily removed knockouts on bottom of enclosure
- Panel studs provided for mounting optional panels
- External mounting feet
- Oil resistant gaskets are permanently secured
Product Details
Hammond® Junction Box, Series: C3R HCR SM, 10 in Height, 8 in Width, 6 in Depth, NEMA 3R/IP24 NEMA Rating, Hinged Cover, 8-1/4 in H x 6-1/4 in W Panel, Lock: Padlock, Knockout Cable Entry, 480 cu-in Capacity, Wall Mounting, 16 ga Galvanized Steel, Painted/Powder Coated, ANSI 61 Gray
Attributes
Finish: Painted/Powder Coated
Features
- Drip shield top and seam-free sides, front and back
- Galvanized steel hinge has stainless steel pin
- Provisions for padlocking on zinc plated draw pull catch
- Easily removed knockouts on bottom of enclosure
- Panel studs provided for mounting optional panels
- External mounting feet
- Oil resistant gaskets are permanently secured
