HAMMOND EN4SD12126GY ECLIPSE ENCL NEMA 12 4 12X12X6
MFR Part #: EN4SD12126GY
SKU #: 3122626
Brand: Hammond®
UPC: 62398044704

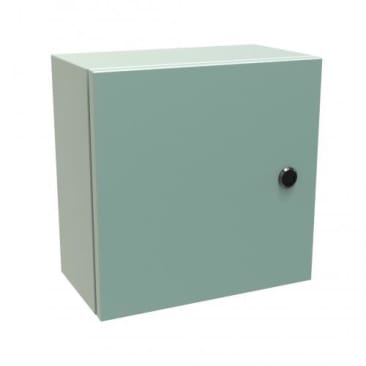

Hammond® EN4SD12126GY Eclipse™ 1-Door Enclosure, 12 in W x 6 in D x 12 in H, NEMA 3R/4 NEMA Rating, Mild Steel
1 Year
Hardware Kit with Panel Mounting Nuts and Sealing Washers
For used to enclose electrical and electronic equipment and protect against harsh, industrial environments for wall mount applications
CSA Certified | CE Marking | IEC 60529 | RoHS Compliant | UL 508A
Product Details
Attributes
Features
Resources
Hammond® Enclosure, 1-Door, Series: Eclipse™, 12 in Width, 6 in Depth, 12 in Height, NEMA 3R/4 NEMA Rating, Hinged Cover, 10.2 in W x 10.2 in H Panel, Lock: 3-Point Handle/Quarter-Turn Latch, 864 cu-in Capacity, Wall Mounting, Mild Steel, Powder Coated/Smooth, Gray
Finish:Powder Coated/Smooth
- Formed 14 or 16 ga steel
- Smooth, continuously welded seams ground smooth
- Formed lip on enclosure excludes flowing liquids and contaminants
- Door latches feature the added safety of quarter-turn slot requiring use of tool for opening
- Doors may be easily removed for modifications and are interchangeable
- Seamless poured-in place gasket
- Collar studs provided for mounting inner panel
- A bonding stud is provided on door and a grounding stud is installed in the enclosure
- Hinges are constructed from 304 stainless steel
- Hinges are constructed from stainless steel
- Quarter-turn latch and multi-point handle (key lockable) are zinc die-cast with black epoxy finish
- Door alignment guide provided on 36 in W enclosures
- Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation
- A wide range of sizes and practical accessories make this product line a complete package
Product Details
Hammond® Enclosure, 1-Door, Series: Eclipse™, 12 in Width, 6 in Depth, 12 in Height, NEMA 3R/4 NEMA Rating, Hinged Cover, 10.2 in W x 10.2 in H Panel, Lock: 3-Point Handle/Quarter-Turn Latch, 864 cu-in Capacity, Wall Mounting, Mild Steel, Powder Coated/Smooth, Gray
Attributes
Finish: Powder Coated/Smooth
Features
- Formed 14 or 16 ga steel
- Smooth, continuously welded seams ground smooth
- Formed lip on enclosure excludes flowing liquids and contaminants
- Door latches feature the added safety of quarter-turn slot requiring use of tool for opening
- Doors may be easily removed for modifications and are interchangeable
- Seamless poured-in place gasket
- Collar studs provided for mounting inner panel
- A bonding stud is provided on door and a grounding stud is installed in the enclosure
- Hinges are constructed from 304 stainless steel
- Hinges are constructed from stainless steel
- Quarter-turn latch and multi-point handle (key lockable) are zinc die-cast with black epoxy finish
- Door alignment guide provided on 36 in W enclosures
- Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation
- A wide range of sizes and practical accessories make this product line a complete package
