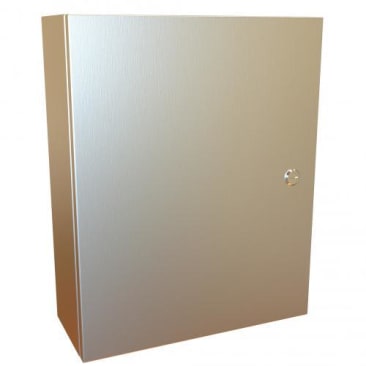

HAMMOND EN4SD20166SS N4X ECLIPSE ENCL-20X16X6-304 SS
MFR Part #: EN4SD20166SS
SKU #: 3230481
Brand: Hammond®
UPC: 62398036298
Hammond® EN4SD20166SS Eclipse™ 1-Door Enclosure With Quarter Turn Latch and Handle, 16 in W x 6 in D x 20 in H, NEMA 3R/4X/13 NEMA Rating, 304 Stainless Steel
1 Year
Hardware Kit with Panel Mounting Nuts and Sealing Washers
For used to enclose electrical and electronic equipment and protect against harsh, industrial environments for wall mount applications
CSA Certified | CE Certified | IEC 60529 | RoHS Compliant | UL 508
Product Details
Attributes
Features
Resources
Hammond® Enclosure, 1-Door, Series: Eclipse™, 16 in Width, 6 in Depth, 20 in Height, NEMA 3R/4X/13 NEMA Rating, Hinged Cover, 14.2 in W x 18.2 in H Panel, Lock: Quarter-Turn Latch, 1920 cu-in Capacity, Wall Mounting, 304 Stainless Steel, Smooth Brushed, Natural
Finish:Smooth Brushed
- Formed 14 or 16 ga 304 stainless steel
- Continuously welded seams ground smooth
- Formed lip on enclosure exclude flowing liquids and contaminants
- Door latches feature the added safety of quarter-turn slot requiring use of tool for opening
- Doors may be easily removed for modifications and are interchangeable
- Seamless poured in place gasket
- Collar studs provided for mounting inner panel
- A bonding stud is provided on door and a grounding stud is installed in the enclosure
- Stainless steel hinge pins and quarter-turns
- Door alignment guide provided on 36 in W enclosures
- Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation
- A wide range of sizes and practical accessories make this product line a complete package
Product Details
Hammond® Enclosure, 1-Door, Series: Eclipse™, 16 in Width, 6 in Depth, 20 in Height, NEMA 3R/4X/13 NEMA Rating, Hinged Cover, 14.2 in W x 18.2 in H Panel, Lock: Quarter-Turn Latch, 1920 cu-in Capacity, Wall Mounting, 304 Stainless Steel, Smooth Brushed, Natural
Attributes
Finish: Smooth Brushed
Features
- Formed 14 or 16 ga 304 stainless steel
- Continuously welded seams ground smooth
- Formed lip on enclosure exclude flowing liquids and contaminants
- Door latches feature the added safety of quarter-turn slot requiring use of tool for opening
- Doors may be easily removed for modifications and are interchangeable
- Seamless poured in place gasket
- Collar studs provided for mounting inner panel
- A bonding stud is provided on door and a grounding stud is installed in the enclosure
- Stainless steel hinge pins and quarter-turns
- Door alignment guide provided on 36 in W enclosures
- Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation
- A wide range of sizes and practical accessories make this product line a complete package
