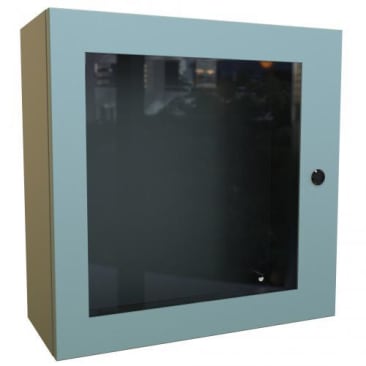

HAMMOND EN4SD20208WGY N412 ECLPS WNDW ENCL-20X20X8-STL/GRY
MFR Part #: EN4SD20208WGY
SKU #: 3230490
Brand: Hammond®
UPC: 62398044567
Hammond® EN4SD20208WGY Eclipse™ Single Door Enclosure With Window, 20 in W x 8 in D x 20 in H, NEMA 3R/4/12 NEMA Rating, 16 ga Mild Steel
1 Year
Hardware Kit with Panel Mounting Nuts and Sealing Washers
For used to enclose electrical and electronic equipment in wall mount applications
CSA Certified | CE Certified | IEC 60529 | RoHS Compliant | UL 508A
Product Details
Attributes
Features
Resources
Hammond® Enclosure, Single Door, Series: Eclipse™, 20 in Width, 8 in Depth, 20 in Height, NEMA 3R/4/12 NEMA Rating, Hinged Cover, 18.2 in L x 18.2 in W Panel, Lock: Quarter-Turn Latch, 3200 cu-in Capacity, Wall Mounting, 16 ga Mild Steel, Smooth, Gray
Finish:Smooth
- Full view UV-resistant polycarbonate window allows maximum viewing area of inner panel
- Smooth, continuously welded seams ground smooth
- Formed lip on enclosure excludes flowing liquids and contaminants
- Door latches feature the added safety of quarter-turn slot requiring use of tool for opening
- Doors may be easily removed for modifications and are interchangeable
- Seamless poured in place gasket
- Collar studs are provided for mounting inner panels
- Bonding stud provided on door and grounding stud installed in enclosure
- Hinges are constructed from 304 stainless steel
- Hinge pins are stainless steel
- quarter-turn latches are zinc die-cast with black epoxy finish
- Impressive styling features like hidden hinges and attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation
- A wide range of sizes and practical accessories make this product line a complete package
