DELTA R3716 FIXED 3 HOLE W/HAND SHOWER ROUGH-IN ONLY
MFR Part #: R3716
SKU #: 1282216
Brand: DELTA®
UPC: 055870445468

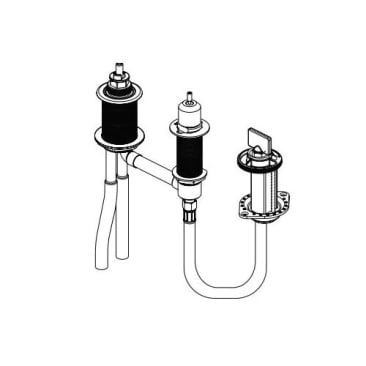

DELTA® R3716 Fixed Roman Tub Rough-In Kit
Lifetime Limited on Parts and Finishes for Commercial Purchasers, 10 years for Multi-Family Residential and 5 years for all other Commercial Uses
ANSI/ASME A112.18.1/CSA B125.1|cCSAus Certified
Product Details
Attributes
Features
Resources
DELTA®, R3716, Roman Tub Rough-In Kit, Fixed, 3 Faucet Holes, 5/8 in Connection
Collection:Traditional
Commercial/Residential:Commercial/Residential
Connection Size:5/8 in
Depth:3 in
Length:16.5 in
Material:Brass
Number of Faucet Holes:3
Type:Fixed
Weight:5.28 lbs
Width:10.75 in
- Adjustable rough-in for thin or thick deck installations
- Fixed 5 in centers for handle body to spout body
- All operating parts are serviceable from the top (above deck)
- Trim kit must also be ordered to complete installation
- 10 gpm flow rate at 60 psi
- Handle needs to be installed on left and facing forward
- Must be installed on finished deck, tiling must be completed prior to installation of rough-in
- All holes must be drilled at a 90 deg angle to the deck surface
- Flexible 5 to 8 in between hand shower and spout
- Solid fabricated brass rough-in bodies
- High-flow, brass, ceramic disk cartridge
- Single handle temperature control
