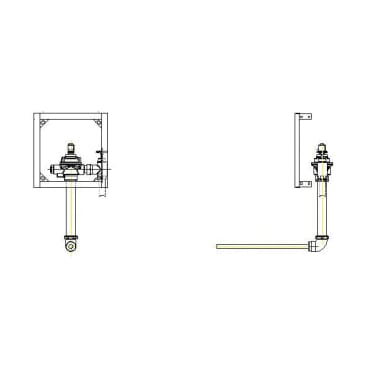

DELTA 1600T6403ARI UR FLUSH VLV RGHIN
MFR Part #: 1600T6403ARI
SKU #: 1202725
Brand: DELTA®
UPC: 055870419049
DELTA® Teck® 1600T6403ARI Concealed Electronic Flush Valve, 8 gpm, 3/4 in Spud, 25 psi, Polished Chrome, Import
Commercial Applications
ADA Compliant to Meet Handicapped Accessibility Standard ICC/ANSI A117.1 of less than 5 lb Operating Force|IAPMO Listed to ASSE 1037/ASME A112.1037/CSA B125.37|PROP65: This product contains one or more chemicals including lead known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after installing or handling the product.
Product Details
Attributes
Features
Resources
DELTA® Teck® Electronic Flush Valve, Concealed, Series: 1600T, Urinal Fixture, 8 gpm Flush, 3/4 in Spud Coupling, Diaphragm Valve Design, Connection Location: Back, 20 in Sensor, 25 psi Pressure, Metal, Polished Chrome, Import
Flush Rate:8 gpm
Type:Concealed
Connection Location:Back
Domestic/Import:Import
Finish/Color:Polished Chrome
Fixture Type:Urinal
Material:Metal
Pressure Rating:25 psi
Sensor Range:20 in
Series:1600T
Spud Coupling:3/4 in
Valve Design:Diaphragm
- Adjustable 114 to 132 mm inlet/valve outlet centers
- Vacuum breaker
- Renewable seat
- Chloramine resistant diaphragm attached to guide with metal retainer
- Pressure loss check angle stop with wheel handle
- Hardwire operated
- For siphon jet urinal with 3/4 in back inlet
- 8 second blocking time
- 0 second activation delay
- Selectable sensing distance: 12 to 28 in, 4 in increments
- Adjustable flush volume using adjustment screw on flush valve
- For recessed mounting components assembled with flush valve 12 in frame with integral sensor in 14 in stainless steel cover
- Supplied as complete flush valve, and wall box or access frame
- Rough-in (requires separate order of trim with same flow for complete product)
- 0.5 gpf (1.9 Lpf) fixed
Product Details
DELTA® Teck® Electronic Flush Valve, Concealed, Series: 1600T, Urinal Fixture, 8 gpm Flush, 3/4 in Spud Coupling, Diaphragm Valve Design, Connection Location: Back, 20 in Sensor, 25 psi Pressure, Metal, Polished Chrome, Import
Attributes
Flush Rate: 8 gpm
Type: Concealed
Connection Location: Back
Domestic/Import: Import
Finish/Color: Polished Chrome
Fixture Type: Urinal
Material: Metal
Pressure Rating: 25 psi
Sensor Range: 20 in
Series: 1600T
Spud Coupling: 3/4 in
Valve Design: Diaphragm
Features
- Adjustable 114 to 132 mm inlet/valve outlet centers
- Vacuum breaker
- Renewable seat
- Chloramine resistant diaphragm attached to guide with metal retainer
- Pressure loss check angle stop with wheel handle
- Hardwire operated
- For siphon jet urinal with 3/4 in back inlet
- 8 second blocking time
- 0 second activation delay
- Selectable sensing distance: 12 to 28 in, 4 in increments
- Adjustable flush volume using adjustment screw on flush valve
- For recessed mounting components assembled with flush valve 12 in frame with integral sensor in 14 in stainless steel cover
- Supplied as complete flush valve, and wall box or access frame
- Rough-in (requires separate order of trim with same flow for complete product)
- 0.5 gpf (1.9 Lpf) fixed
