MACROMATIC GSC120C SLIM 6 AMP 120VAC FORM C CONTROL RELAY

MACROMATIC GSC120C General Purpose Relay, GS Series, 6A at 250V AC/30V DC, 1500 VA/180W Contact Rating, Mechanical Life of 10000000 operations, Operating Temp of -40 to 55 deg C, 0.07 lb, 16-20 AWG, 120 V AC/DC Control Voltage, 250 mW Load, Voltage Tolerances = ±10% of nominal coil voltage, 6 A

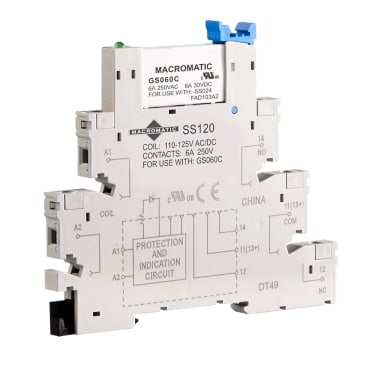

Compact GS Series General Purpose Relays are used for high density applications. The relay and sockets are assembled as one unit and must be used together, providing DIN-rail mounting. GSC120C is comprised of GS060C relay and SS120 socket. The relay and socket installation provides finger protection, indication of power status and 1 Form C output contact.

Macromatic GS Series General Purpose Relays are designed for high density applications while still providing reliability and durability. These slim relays (6 mm wide installed on socket) have contacts rated at 6 Amp 250V AC/ 30V DC. They are rated for 10,000,000 mechanical operations. The GS Series relays carry UL/cUL Safety Approvals and are RoHS compliant. Relay and socket installation provides finger protection, indication of power status and 1 Form C contact and is available in common control voltages.
