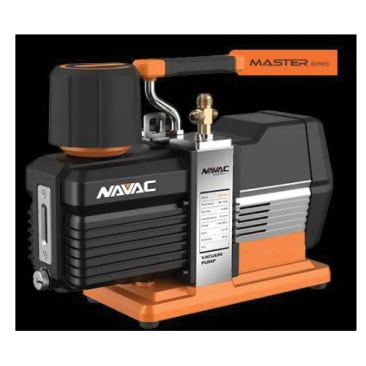

NAVAC NP12DM MASTER SERIES 12CFM 5MIC INDUSTRIAL VACUUM PUMP
MFR Part #:Â NP12DM
SKU #:Â 1687897
Brand:Â NAVAC
Navac NP12DM Vacuum Pump, 115 VAC, 1/2 hp, 1/4 in, 3/8 in, 1/2 in, 12 cfm, 5 um Max Vacuum
2 Year
Product Details
Attributes
Features
Resources
Navac Vacuum Pump, 115 VAC, 7.9 A, 1/2 hp, 12 cfm Flow Rate, 5 um Maximum Vacuum, 1/4 in, 3/8 in, 1/2 in Connection, 28 oz Oil, 16.3 in Overall Length, 6 in Overall Width, 12.1 in Overall Depth
With industrial grade technology NP12DM solves the problems of long time evacuation inadequate vacuum level in the service for large commercial refrigeration or central AC systems. The dual stage rotary vane pump and inverter motor lead to faster evacuation and a deeper vacuum. Integrate pump structure and built in oil back flow prevention assure superior performance and reliability. The combination of enhanced technology and aesthetic design enables the NP12DM to be a top class product.
Amperage Rating:7.9 A
Connection Size:1/4 in, 3/8 in, 1/2 in
Flow Rate:12 cfm
HP Rating:1/2 hp
Maximum Vacuum:5 um
Oil Capacity:28 oz
Overall Depth:12.1 in
Overall Length:16.3 in
Overall Width:6 in
Voltage Rating:115 VAC
- Industrial grade design
- Brushless DC technology
- Oil backflow performance
- Oil drain valve
- Integrated dual stage pump
- Sight glass
Product Details
Navac Vacuum Pump, 115 VAC, 7.9 A, 1/2 hp, 12 cfm Flow Rate, 5 um Maximum Vacuum, 1/4 in, 3/8 in, 1/2 in Connection, 28 oz Oil, 16.3 in Overall Length, 6 in Overall Width, 12.1 in Overall Depth
With industrial grade technology NP12DM solves the problems of long time evacuation inadequate vacuum level in the service for large commercial refrigeration or central AC systems. The dual stage rotary vane pump and inverter motor lead to faster evacuation and a deeper vacuum. Integrate pump structure and built in oil back flow prevention assure superior performance and reliability. The combination of enhanced technology and aesthetic design enables the NP12DM to be a top class product.
Attributes
Amperage Rating:Â 7.9 A
Connection Size:Â 1/4 in, 3/8 in, 1/2 in
Flow Rate:Â 12 cfm
HP Rating:Â 1/2 hp
Maximum Vacuum:Â 5 um
Oil Capacity:Â 28 oz
Overall Depth:Â 12.1 in
Overall Length:Â 16.3 in
Overall Width:Â 6 in
Voltage Rating:Â 115 VAC
Features
- Industrial grade design
- Brushless DC technology
- Oil backflow performance
- Oil drain valve
- Integrated dual stage pump
- Sight glass
