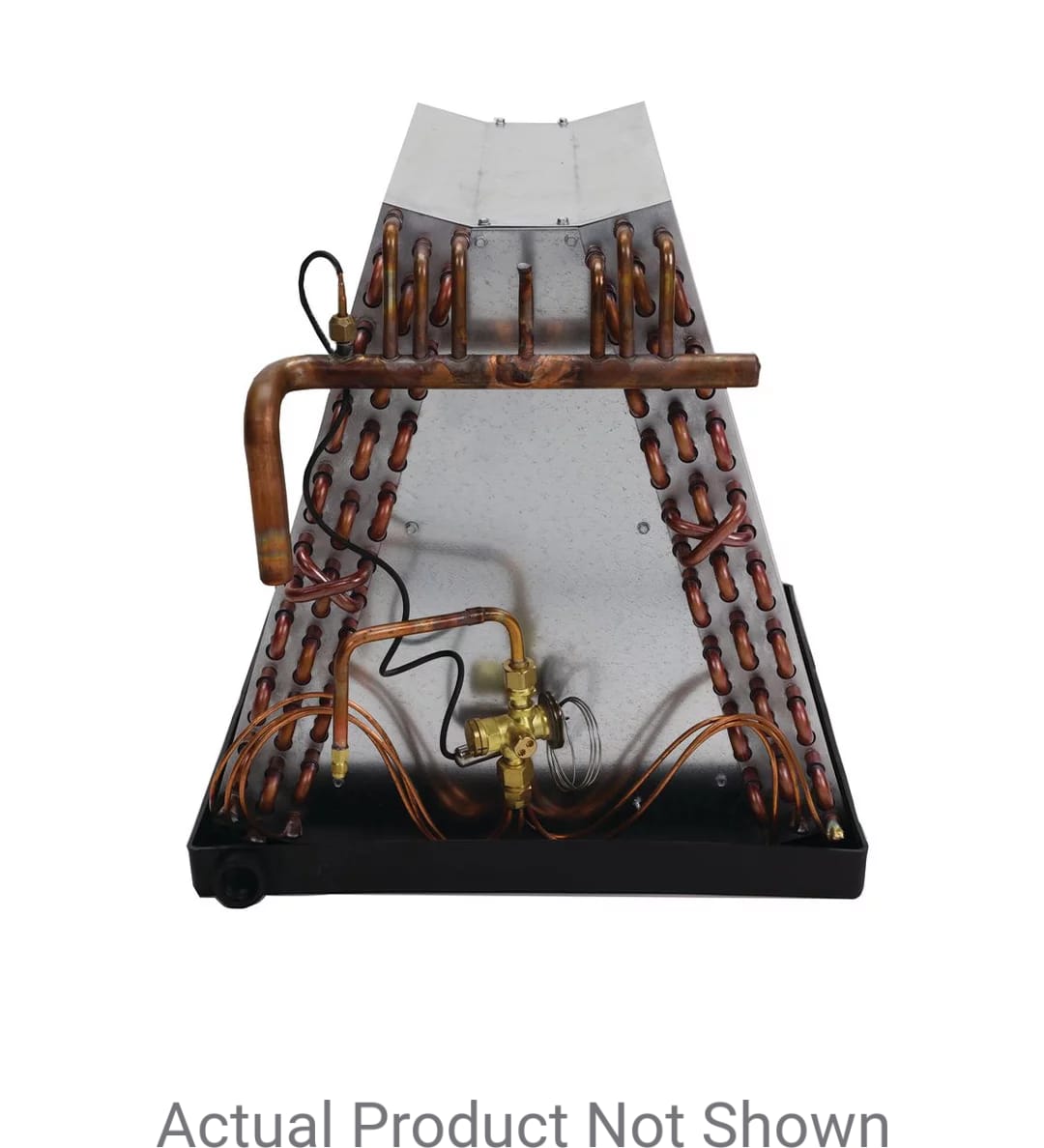

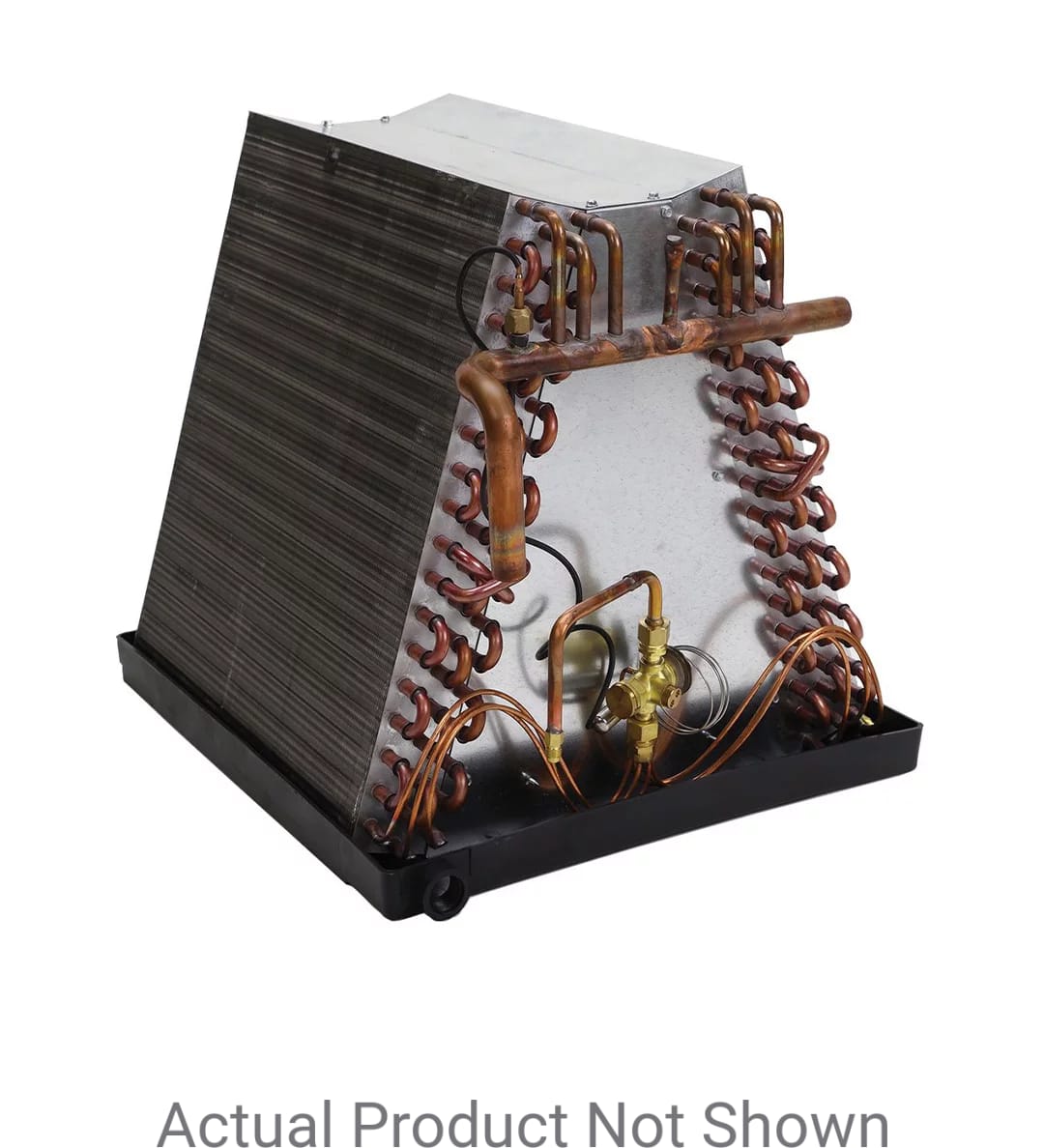

ASPEN CM24A24-177L-000 2.0T 24MBH COPPER UNCASED MOBILE HOME EVAPORATOR COIL TXV
MFR Part #: CM24A24-177L-000
SKU #: 1688375
Brand: Aspen Manufacturing
Aspen Everything's Right Here™ CM24A24-177L-000 2-Row Evaporator Coil, 2 ton Nominal, Downflow Air Flow, Uncased Enclosure, R-410A Refrigerant
10 Years Limited
Condensate Drain Elbow, Flexible Drain Tubing, Drain Hose Kit and Downflow Plate Kit
Manufactured Home Furnaces and Residential Applications
AHRI Certified|cETLus Listed|ETL Listed|PROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov.
Product Details
Features
Resources
Aspen Everything's Right Here™ Evaporator Coil, 2-Row, Series: CM Series, 2 ton Nominal Capacity, Downflow, R-410A Refrigerant, Non-Bleed A/C or H/P TXV Metering Device, 3/8 in Liquid Line, 3/4 in Suction Line, Copper Tube, Uncased, 17-3/4 in W x 19-5/8 in D x 13-1/2 in H
- Rifled copper tubing, enhanced aluminum fins
- Immersion-tested at 500 psi, then nitrogen-pressurized and sealed
- Left hand refrigerant and plumbing connections
- Liquid line Schrader valve for hiss-testing
- Heavy duty polypropylene drain pans
- Drain connection - 177L pans have single LH 3/4 in FNPT, 195L pan have quad drains, 3/4 in FNPT
- AHRI certifiable with all brands of A/C and heat pump systems
- TXV factory mounted with equalization tube connected to manifold and feeler bulb tie strapped to suction line with copper clamp
Product Details
Aspen Everything's Right Here™ Evaporator Coil, 2-Row, Series: CM Series, 2 ton Nominal Capacity, Downflow, R-410A Refrigerant, Non-Bleed A/C or H/P TXV Metering Device, 3/8 in Liquid Line, 3/4 in Suction Line, Copper Tube, Uncased, 17-3/4 in W x 19-5/8 in D x 13-1/2 in H
Features
- Rifled copper tubing, enhanced aluminum fins
- Immersion-tested at 500 psi, then nitrogen-pressurized and sealed
- Left hand refrigerant and plumbing connections
- Liquid line Schrader valve for hiss-testing
- Heavy duty polypropylene drain pans
- Drain connection - 177L pans have single LH 3/4 in FNPT, 195L pan have quad drains, 3/4 in FNPT
- AHRI certifiable with all brands of A/C and heat pump systems
- TXV factory mounted with equalization tube connected to manifold and feeler bulb tie strapped to suction line with copper clamp
