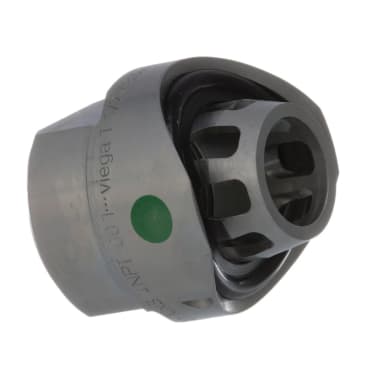

VIEGA 26885 MEGAPRESS 4815.3 6X3/4IN PRSXFPT STEEL PRESS WATER BRANCH CONNECTOR FOR SCH10 PIPE
Product Details
Attributes
Features
Resources
MegaPress® Branch Connector, Press-In, Series: 4812.3, Fitting/Connector Type: Branch Connector, 6 x 3/4 in Nominal, Press x FNPT, SCH 10, 200 psi, 250 deg F, Carbon Steel, Zinc Nickel Coated, Import
The MegaPress® Press-in Branch Connector is designed for SCH 10 and SCH 40/STD carbon steel pipes. The press-in branch connector creates a 3/4 in NPT threaded connection in accordance with ASME B1.20.1. It is particularly suitable where space is at a premium, e.g. in pipe manifold installation for sensors, thermometers or drains. A separate press-in branch connector is available for the different pipe dimensions. The press-in branch connector is fitted with a sealing element made of EPDM or FKM. The press-in branch connectors are marked with a green dot for EPDM and a white dot for FKM. The Viega MegaPress® Press-in Branch Connector requires no welding and poses no fire hazard, which is particularly important in restoration or retrofit work. The press fittings are installed with a battery-powered or corded pressing tool.
- Approved for more applications than any other carbon steel pipe press fitting system
- Suitable for use with ASTM SCH 5 to SCH 40/STD carbon steel pipe (can be used on higher schedule pipe but limited to maximum pressure listed)
- Corrosion-resistant zinc nickel coating
- More than 150 engineered fitting configurations from 1/2 in to 2 in
- Approved for underground applications, in accordance with code and local AHJ
- Viega Smart Connect® technology provides installers added confidence in their ability to ensure secure connections
Product Details
MegaPress® Branch Connector, Press-In, Series: 4812.3, Fitting/Connector Type: Branch Connector, 6 x 3/4 in Nominal, Press x FNPT, SCH 10, 200 psi, 250 deg F, Carbon Steel, Zinc Nickel Coated, Import
The MegaPress® Press-in Branch Connector is designed for SCH 10 and SCH 40/STD carbon steel pipes. The press-in branch connector creates a 3/4 in NPT threaded connection in accordance with ASME B1.20.1. It is particularly suitable where space is at a premium, e.g. in pipe manifold installation for sensors, thermometers or drains. A separate press-in branch connector is available for the different pipe dimensions. The press-in branch connector is fitted with a sealing element made of EPDM or FKM. The press-in branch connectors are marked with a green dot for EPDM and a white dot for FKM. The Viega MegaPress® Press-in Branch Connector requires no welding and poses no fire hazard, which is particularly important in restoration or retrofit work. The press fittings are installed with a battery-powered or corded pressing tool.
Attributes
Features
- Approved for more applications than any other carbon steel pipe press fitting system
- Suitable for use with ASTM SCH 5 to SCH 40/STD carbon steel pipe (can be used on higher schedule pipe but limited to maximum pressure listed)
- Corrosion-resistant zinc nickel coating
- More than 150 engineered fitting configurations from 1/2 in to 2 in
- Approved for underground applications, in accordance with code and local AHJ
- Viega Smart Connect® technology provides installers added confidence in their ability to ensure secure connections
