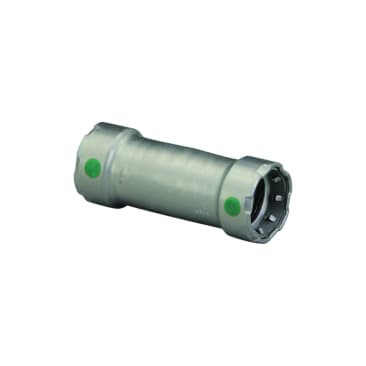

VIEGA 25090 MEGAPRESS 4815.3 1-1/2IN PRS STEEL PRESS WATER EXTENDED COUPLING LESS STOP
MFR Part #: 25090
SKU #: 3385888
Brand: Viega | MegaPress
MegaPress® 25090 Extended Coupling, 1-1/2 in Nominal, Press End Style, Carbon Steel, Import
Limited
EPDM Sealing Element
For use in chilled water, hydronic heating, compressed air and fire sprinkler applications
ASME B31|ABS Listed|CAL Fire Listed|CRN #OA14541.6|DNV Listed|FM Class 1920|GL Listed|IAPMO PS117|ICC LC1002|International Plumbing Code|International Mechanical Code|LR Listed|NFPA 13/13D/13R/31/54 and 58|UL 213|Uniform Plumbing Code|Uniform Mechanical Code
Product Details
Attributes
Features
Resources
MegaPress® Extended Coupling, Fitting/Connector Type: Coupling, 1-1/2 in Nominal, Press, 200 psi, -4 to 250 deg F, Carbon Steel, 5.44 in L, Import
Viega MegaPress® is a carbon steel press system and can be utilized with Schedule 5 to Schedule 40 black iron pipe. Viega MegaPress® fittings for black iron pipe reduce installation time and eliminate messy cutting oils.
Dimensions:5.44 in L
Domestic/Import:Import
End Style:Press
Fitting/Connector Type:Coupling
Material:Carbon Steel
Nominal Size:1-1/2 in
Pressure Rating:200 psi
Temperature Rating:-4 to 250 deg F
- For use with SCH 5 to SCH 40 carbon steel piping system
- Makes secure press connections in less than seven seconds
- No oil or heavy threading equipment needed
- Patented Viega Smart Connect® feature
- Connections can be made wet or dry
- Model 4815.3
- Without stop
Product Details
MegaPress® Extended Coupling, Fitting/Connector Type: Coupling, 1-1/2 in Nominal, Press, 200 psi, -4 to 250 deg F, Carbon Steel, 5.44 in L, Import
Viega MegaPress® is a carbon steel press system and can be utilized with Schedule 5 to Schedule 40 black iron pipe. Viega MegaPress® fittings for black iron pipe reduce installation time and eliminate messy cutting oils.
Attributes
Dimensions: 5.44 in L
Domestic/Import: Import
End Style: Press
Fitting/Connector Type: Coupling
Material: Carbon Steel
Nominal Size: 1-1/2 in
Pressure Rating: 200 psi
Temperature Rating: -4 to 250 deg F
Features
- For use with SCH 5 to SCH 40 carbon steel piping system
- Makes secure press connections in less than seven seconds
- No oil or heavy threading equipment needed
- Patented Viega Smart Connect® feature
- Connections can be made wet or dry
- Model 4815.3
- Without stop
