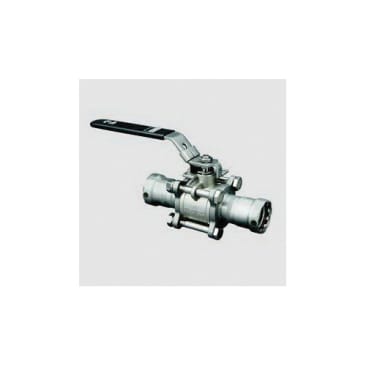

VIEGA 86530 MEGAPRESS 316 5175.8 1/2IN PRS 316 STAINLESS STEEL PRESS 3-PIECE BALL VALVE
Product Details
Attributes
Features
Resources
MegaPress® Ball Valve, 3-Piece, Series: Model 5175.8, 1/2 in Nominal, Press End Style, 250 psi Pressure, 0 to 250 deg F, Full Port, Media: Water/Diesel Fuel/Lube Oil/Ammonia/Low Pressure Steam/Fluids/Gases, Locking Handle Actuator, 316 Stainless Steel Ball, 2.85 in Top to Inlet Center, 316 stainless steel Body, 316 Stainless Steel Stem Trim, EPDM/PTFE Softgoods, Import
The MegaPress® 316 3-piece stainless steel ball valve is equipped with a full port, 316 stainless steel 3-piece body and stainless steel press ends. The ball valve features an EPDM sealing element, a 420 stainless grip ring, a 304 stainless separator ring, PTFE stem seals, a locking metal handle, and Viega's Smart Connect® technology for easy identification of unpressed connections during pressure testing.
- Engineered with a 420 stainless steel grip ring plus a 304 stainless steel separator ring for sizes 1/2 to 2 in and a PBT separator for sizes 2-1/2 to 4 in
- 316 stainless carries an NSF-61 potable water rating
- Wide range of fitting configurations
- Eliminates threading and welding
- No fire watches, hot work permits or gas freeing
- Makes secure press connections from 1/2 to 4 in seconds
- Compatible with existing press tools
- EPDM sealing element, PTFE stem seals
Product Details
MegaPress® Ball Valve, 3-Piece, Series: Model 5175.8, 1/2 in Nominal, Press End Style, 250 psi Pressure, 0 to 250 deg F, Full Port, Media: Water/Diesel Fuel/Lube Oil/Ammonia/Low Pressure Steam/Fluids/Gases, Locking Handle Actuator, 316 Stainless Steel Ball, 2.85 in Top to Inlet Center, 316 stainless steel Body, 316 Stainless Steel Stem Trim, EPDM/PTFE Softgoods, Import
The MegaPress® 316 3-piece stainless steel ball valve is equipped with a full port, 316 stainless steel 3-piece body and stainless steel press ends. The ball valve features an EPDM sealing element, a 420 stainless grip ring, a 304 stainless separator ring, PTFE stem seals, a locking metal handle, and Viega's Smart Connect® technology for easy identification of unpressed connections during pressure testing.
Attributes
Features
- Engineered with a 420 stainless steel grip ring plus a 304 stainless steel separator ring for sizes 1/2 to 2 in and a PBT separator for sizes 2-1/2 to 4 in
- 316 stainless carries an NSF-61 potable water rating
- Wide range of fitting configurations
- Eliminates threading and welding
- No fire watches, hot work permits or gas freeing
- Makes secure press connections from 1/2 to 4 in seconds
- Compatible with existing press tools
- EPDM sealing element, PTFE stem seals
