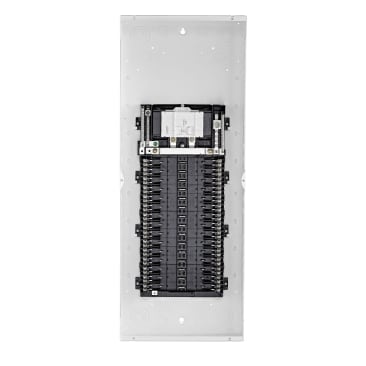

LEVITON LP310-CBW 100A 30-SPACE NEMA1 INDOOR LOAD CENTER WITH WINDOW DOOR & MAIN BREAKER
MFR Part #: LP310-CBW
SKU #: 3205072
UPC: 07847792268
Leviton® LP310-CBW Factory Installed Main Breaker Load Center, 120/240 VAC, 100 A, 22 kA Interrupt
10 Year Limited
Enclosure and Window Door
CSA Certified | UL 50/50E/67/869A Listed
Product Details
Attributes
Features
Resources
Leviton® Factory Installed Main Breaker Load Center, 100 A, 120/240 VAC, 22 kA Interrupt, 3-Wire Wiring Configuration, 1 ph, 30 Spaces, 30 Circuits, Steel, Copper Bus, 3 AWG to 300 kcmil, 4 to 2/0 AWG Wire, NEMA 1, 0 to 40 deg C, 39 in H x 16-1/4 in W, Powder-Coated, White, Additional Information: 37 in H x 14-1/4 in W x 4 in D Box Size
Finish:Powder-Coated
- Leviton® revolutionary design allows the entire load center to be wired at rough-in without any circuit breakers present
- All Leviton load centers come standard equipped with tin-plated copper bussing
- Features a white, powder-coated finish for a sleek, modern appearance
- Provides at-a-glance operational status of circuit breakers
- Easily identify when a breaker has tripped and the type of fault with intuitive LED diagnostics
Product Details
Leviton® Factory Installed Main Breaker Load Center, 100 A, 120/240 VAC, 22 kA Interrupt, 3-Wire Wiring Configuration, 1 ph, 30 Spaces, 30 Circuits, Steel, Copper Bus, 3 AWG to 300 kcmil, 4 to 2/0 AWG Wire, NEMA 1, 0 to 40 deg C, 39 in H x 16-1/4 in W, Powder-Coated, White, Additional Information: 37 in H x 14-1/4 in W x 4 in D Box Size
Attributes
Finish: Powder-Coated
Features
- Leviton® revolutionary design allows the entire load center to be wired at rough-in without any circuit breakers present
- All Leviton load centers come standard equipped with tin-plated copper bussing
- Features a white, powder-coated finish for a sleek, modern appearance
- Provides at-a-glance operational status of circuit breakers
- Easily identify when a breaker has tripped and the type of fault with intuitive LED diagnostics
