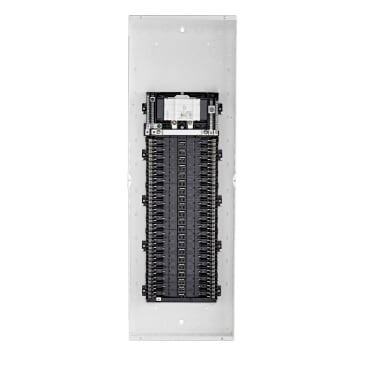

LEVITON LP410-BWC 100A 42-SPACE NEMA1 INDOOR LOAD CENTER WITH WINDOW DOOR & MAIN BREAKER
MFR Part #: LP410-BWC
SKU #: 3269735
UPC: 7847757813
Leviton® LP410-BWC LP410 Load Center, 120/240 V AC, 100 A, 22 kA Interrupt
10 Years
CSA Certified | UL 67 | UL 50 | UL 50E | UL 869A
Product Details
Attributes
Resources
Leviton®, LP410-BWC, Load Center, Series: LP410, 120/240 V AC, 100 A, 22 kA Interrupt, 42 Circuits, 225 A Bus, 42 Spaces, 4 to 2/0 AWG Ground/3 AWG to 300 kcmil Supply Wire, Flush/Surface Mounting, NEMA 1 Enclosure, Galvanized Steel Housing Material, 43 in H x 14.25 in W x 4 in D Dimensions
Amperage Rating:100 A
Bus Rating:225 A
Enclosure Type:NEMA 1
Interrupt Rating:22 kA
Mounting Type:Flush/Surface
Number of Circuits:42
Number of Spaces:42
Series:LP410
Voltage Rating:120/240 V AC
Product Details
Leviton®, LP410-BWC, Load Center, Series: LP410, 120/240 V AC, 100 A, 22 kA Interrupt, 42 Circuits, 225 A Bus, 42 Spaces, 4 to 2/0 AWG Ground/3 AWG to 300 kcmil Supply Wire, Flush/Surface Mounting, NEMA 1 Enclosure, Galvanized Steel Housing Material, 43 in H x 14.25 in W x 4 in D Dimensions
Attributes
Amperage Rating: 100 A
Bus Rating: 225 A
Enclosure Type: NEMA 1
Interrupt Rating: 22 kA
Mounting Type: Flush/Surface
Number of Circuits: 42
Number of Spaces: 42
Series: LP410
Voltage Rating: 120/240 V AC
