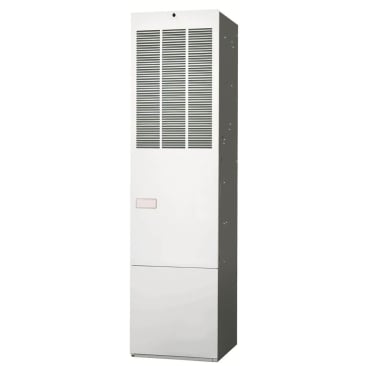

COMFORT AIRE MG2R-072F1ABM1 72MBH MANUFACTURED HOME GAS FURNACE
MFR Part #: MG2R-072F1ABM1
SKU #: 1688280
Brand: Comfort-Aire®
Mars® MG2R-072F1ABM1 High Efficiency/Direct Vent Condensing Gas Furnace, 120 V, 1276 cfm, 3/4 hp, 95 % AFUE, Downflow
CSA Certified|ULus Listed
Product Details
Attributes
Features
Resources
Mars® High Efficiency/Direct Vent Condensing Gas Furnace, Series: MG2R Series, 72000 Btu/hr Input, 68000 Btu/hr Output, 120 V, 10.8 A, CFM Rating: 1276 cfm, 3/4 hp HP Rating, 95 % AFUE, 1 ph, 60 Hz, 1 Stage, Downflow Configuration, NPT Connection Type, 1/2 in Connection, Liquid Propane Gas, 5 Speed, 56 in H x 19-7/8 in W x 24-5/8 in D Cabinet, ECM Motor, Vent, Ducted or Ductless: Vent, 20 A Fuse, Hot Surface Ignition, 0.3 in-WC, 35 to 65 deg F Rise, Additional Information: Insulated Manufactured Housing Cabinet
The high efficiency down flow gas furnace is designed for all manufactured housing applications. It may be installed in a utility room or enclosed in a closet. CSA design certified for use in the United States and Canada.
Additional Information:Insulated Manufactured Housing Cabinet
AFUE:.95
AFUE Rating:95 %
Amperage Rating:10.8 A
Cabinet:Insulated
Cabinet Dimensions:56 in H x 19-7/8 in W x 24-5/8 in D
CFM Rating:1276 cfm
Configuration:Downflow
Connection Size:1/2 in
Connection Type:NPT
Frequency Rating:60 Hz
Fuel Type:Liquid Propane Gas
Fuse Rating:20 A
HP Rating:3/4 hp
Ignition System:Hot Surface
Input BTU Rating:72000 Btu/hr
Motor Type:ECM
Number of Speeds:5
Number of Stages:1
Output BTU Rating:68000 Btu/hr
Phase:1 ph
Pressure Rating:.3 in-WC
Series:MG2R Series
Temperature Rise:35 to 65 deg F
Vent, Ducted or Ductless:Vent
Voltage Rating:120 V
- 100% fired and tested
- Dependable, hot surface ignitor
- Stainless steel secondary heat exchanger
- Sealed combustion system
- Fully insulated cabinet
- ECM constant torque motor
- Diagnostic lights for easy troubleshooting, without counting flashes
Product Details
Mars® High Efficiency/Direct Vent Condensing Gas Furnace, Series: MG2R Series, 72000 Btu/hr Input, 68000 Btu/hr Output, 120 V, 10.8 A, CFM Rating: 1276 cfm, 3/4 hp HP Rating, 95 % AFUE, 1 ph, 60 Hz, 1 Stage, Downflow Configuration, NPT Connection Type, 1/2 in Connection, Liquid Propane Gas, 5 Speed, 56 in H x 19-7/8 in W x 24-5/8 in D Cabinet, ECM Motor, Vent, Ducted or Ductless: Vent, 20 A Fuse, Hot Surface Ignition, 0.3 in-WC, 35 to 65 deg F Rise, Additional Information: Insulated Manufactured Housing Cabinet
The high efficiency down flow gas furnace is designed for all manufactured housing applications. It may be installed in a utility room or enclosed in a closet. CSA design certified for use in the United States and Canada.
Attributes
Additional Information: Insulated Manufactured Housing Cabinet
AFUE: .95
AFUE Rating: 95 %
Amperage Rating: 10.8 A
Cabinet: Insulated
Cabinet Dimensions: 56 in H x 19-7/8 in W x 24-5/8 in D
CFM Rating: 1276 cfm
Configuration: Downflow
Connection Size: 1/2 in
Connection Type: NPT
Frequency Rating: 60 Hz
Fuel Type: Liquid Propane Gas
Fuse Rating: 20 A
HP Rating: 3/4 hp
Ignition System: Hot Surface
Input BTU Rating: 72000 Btu/hr
Motor Type: ECM
Number of Speeds: 5
Number of Stages: 1
Output BTU Rating: 68000 Btu/hr
Phase: 1 ph
Pressure Rating: .3 in-WC
Series: MG2R Series
Temperature Rise: 35 to 65 deg F
Vent, Ducted or Ductless: Vent
Voltage Rating: 120 V
Features
- 100% fired and tested
- Dependable, hot surface ignitor
- Stainless steel secondary heat exchanger
- Sealed combustion system
- Fully insulated cabinet
- ECM constant torque motor
- Diagnostic lights for easy troubleshooting, without counting flashes
