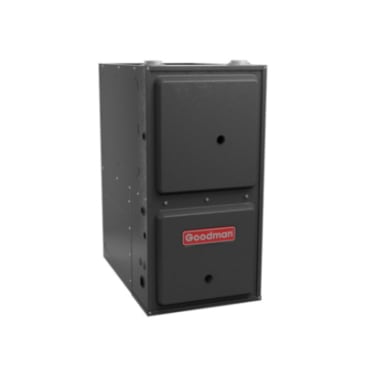

GOODMAN GC9C961005CN EEM DF 2STG 100BTU C-CAB NG FURNACE
Product Details
Attributes
Features
Resources
Goodman® Gas Furnace, GC9C96 Model, 100000 Btu/hr Input BTU Rating, 96000 Btu/hr Output BTU Rating, 115 VAC Voltage Rating, 13.3 A Amperage Rating, 2000 cfm Rating, 1 hp HP Rating, 96 % AFUE Rating, 1 ph Phase, 60 Hz Frequency Rating, 2 Number of Stages, Downflow/Horizontal Configuration, Connection Type: FNPT, 1/2 in Connection, Natural Gas, Propane Fuel Type, 5 Number of Burners, 9 Number of Speeds, 10 in W x 11 in D Blower Size, 34-1/2 in H x 21 in W x 28-3/4 in D Cabinet Dimensions, ECM Motor Type, Top Vent Vent, Ducted or Ductless, 2 to 3 in Dia Vent Size, 20 A Fuse Rating, 5 ton Tonnage, 40 VA Transformer Rating, Hot Surface Silicon Nitride Ignition Type, Steel/Stainless Steel, 35 to 65 deg F Temperature Rise, Domestic Domestic/Import
- Heavy duty aluminized steel tubular heat exchanger
- Stainless steel secondary heat exchanger
- Energy efficient, multi-speed ECM blower motor
- Durable silicon nitride igniter
- Quiet two-speed induced draft blower
- High reliability and quality
- Faster condensate water drainage and no unit water leakage
- Durable and long igniter life
- Provisions for electronic air cleaner and humidifier
- Energy Efficient and quiet circulation
- Lower NOx emission
- Self-diagnostic control board with constant memory
- Easy Connection for EAC and humidifier
Product Details
Goodman® Gas Furnace, GC9C96 Model, 100000 Btu/hr Input BTU Rating, 96000 Btu/hr Output BTU Rating, 115 VAC Voltage Rating, 13.3 A Amperage Rating, 2000 cfm Rating, 1 hp HP Rating, 96 % AFUE Rating, 1 ph Phase, 60 Hz Frequency Rating, 2 Number of Stages, Downflow/Horizontal Configuration, Connection Type: FNPT, 1/2 in Connection, Natural Gas, Propane Fuel Type, 5 Number of Burners, 9 Number of Speeds, 10 in W x 11 in D Blower Size, 34-1/2 in H x 21 in W x 28-3/4 in D Cabinet Dimensions, ECM Motor Type, Top Vent Vent, Ducted or Ductless, 2 to 3 in Dia Vent Size, 20 A Fuse Rating, 5 ton Tonnage, 40 VA Transformer Rating, Hot Surface Silicon Nitride Ignition Type, Steel/Stainless Steel, 35 to 65 deg F Temperature Rise, Domestic Domestic/Import
Attributes
Features
- Heavy duty aluminized steel tubular heat exchanger
- Stainless steel secondary heat exchanger
- Energy efficient, multi-speed ECM blower motor
- Durable silicon nitride igniter
- Quiet two-speed induced draft blower
- High reliability and quality
- Faster condensate water drainage and no unit water leakage
- Durable and long igniter life
- Provisions for electronic air cleaner and humidifier
- Energy Efficient and quiet circulation
- Lower NOx emission
- Self-diagnostic control board with constant memory
- Easy Connection for EAC and humidifier
