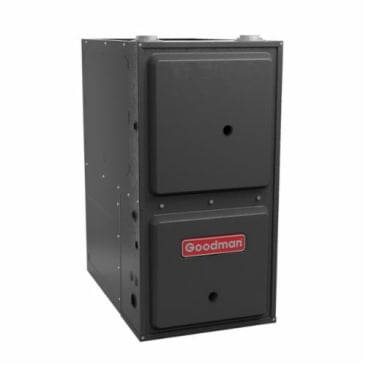

GOODMAN GCEC960403BN 96 EEM CFLOW FURNACE
Product Details
Attributes
Features
Resources
Goodman® Gas Furnace, GCEC96 Model, 40000 Btu/hr Input BTU Rating, 115 V Voltage Rating, 8 A Amperage Rating, 1200 cfm Rating, 1/2 hp at 1075 rpm HP Rating, 96 % AFUE Rating, 1 ph Phase, 60 Hz Frequency Rating, Downflow/Horizontal Configuration, Connection Type: 1/2 in FPT Gas, Natural Gas Fuel Type, 2 Number of Burners, 10 in Dia x 8 in W Blower Size, 17-1/2 in W x 28-3/4 in D x 34-1/2 in H Cabinet Dimensions, 2 to 3 in Dia Vent Size, 15 A Fuse Rating, 3 ton Tonnage, Heavy Gauge Steel, 20 to 50 deg F Temperature Rise
- Energy-efficient multi-speed ECM blower motor
- Heavy-duty aluminized steel tubular heat exchanger
- Stainless steel secondary heat exchanger
- Two stage gas valve provides quiet, economical heating
- Durable silicon nitride igniter
- Quiet two speed induced draft blower
- Self-diagnostic control board with constant memory fault code history output to a LED
- Color-coded low voltage terminals with provisions for electronic air cleaners and humidifiers
- Low continuous fan speed options offer quiet air circulation
- Easy to install top venting with optional side venting
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (QLeak) less than or equal to 2%
- Fully insulated heat exchanger and blower section
- Airtight solid bottom for side return with easy cut tabs for effortless removal in bottom air inlet applications
- Low NOx
- Durable finish
Product Details
Goodman® Gas Furnace, GCEC96 Model, 40000 Btu/hr Input BTU Rating, 115 V Voltage Rating, 8 A Amperage Rating, 1200 cfm Rating, 1/2 hp at 1075 rpm HP Rating, 96 % AFUE Rating, 1 ph Phase, 60 Hz Frequency Rating, Downflow/Horizontal Configuration, Connection Type: 1/2 in FPT Gas, Natural Gas Fuel Type, 2 Number of Burners, 10 in Dia x 8 in W Blower Size, 17-1/2 in W x 28-3/4 in D x 34-1/2 in H Cabinet Dimensions, 2 to 3 in Dia Vent Size, 15 A Fuse Rating, 3 ton Tonnage, Heavy Gauge Steel, 20 to 50 deg F Temperature Rise
Attributes
Features
- Energy-efficient multi-speed ECM blower motor
- Heavy-duty aluminized steel tubular heat exchanger
- Stainless steel secondary heat exchanger
- Two stage gas valve provides quiet, economical heating
- Durable silicon nitride igniter
- Quiet two speed induced draft blower
- Self-diagnostic control board with constant memory fault code history output to a LED
- Color-coded low voltage terminals with provisions for electronic air cleaners and humidifiers
- Low continuous fan speed options offer quiet air circulation
- Easy to install top venting with optional side venting
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (QLeak) less than or equal to 2%
- Fully insulated heat exchanger and blower section
- Airtight solid bottom for side return with easy cut tabs for effortless removal in bottom air inlet applications
- Low NOx
- Durable finish
