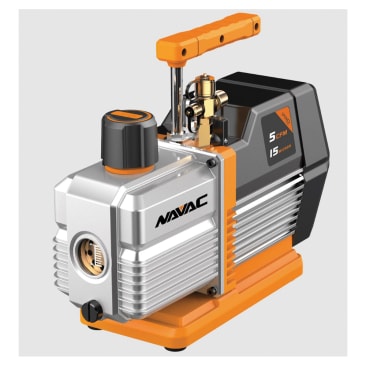

NAVAC NP5DP PRO SERIES 5CFM 2-STAGE 15MIC VACUUM PUMP

Name: NAVAC NP5DP PRO SERIES 5CFM 2-STAGE 15MIC VACUUM PUMP
Brand: NAVAC
SKU: 1687893
Availability: InStock

MFR Part #: NP5DP

SKU #: 1687893

Brand: NAVAC

Navac NP5DP Vacuum Pump, 115 V, 3/4 hp, 1/4 in, 3/8 in, 1/2 in, 5 cfm, 15 um Max Vacuum

1 Year

Product Details
Attributes
Features
Resources

Navac Vacuum Pump, 115 V, 4.3 A, 3/4 hp, 5 cfm Flow Rate, 15 um Maximum Vacuum, 1/4 in, 3/8 in, 1/2 in Connection, 17 oz Oil, 2-Stage, AC Motor, 14 in Overall Length, 5 in Overall Width, 11.3 in Overall Depth

The NP5DP features twin cylinder for high ultimate vacuum, integrated cylinder structure for high performance and reliability and forced oil circulation for improved efficiency and durability.

Product Details

Navac Vacuum Pump, 115 V, 4.3 A, 3/4 hp, 5 cfm Flow Rate, 15 um Maximum Vacuum, 1/4 in, 3/8 in, 1/2 in Connection, 17 oz Oil, 2-Stage, AC Motor, 14 in Overall Length, 5 in Overall Width, 11.3 in Overall Depth

The NP5DP features twin cylinder for high ultimate vacuum, integrated cylinder structure for high performance and reliability and forced oil circulation for improved efficiency and durability.

Attributes

Amperage Rating: 4.3 A

Connection Size: 1/4 in, 3/8 in, 1/2 in

Flow Rate: 5 cfm

HP Rating: 3/4 hp

Maximum Vacuum: 15 um

Motor Type: 2-Stage, AC

Oil Capacity: 17 oz

Overall Depth: 11.3 in

Overall Length: 14 in

Overall Width: 5 in

Voltage Rating: 115 V

Features

High ultimate vacuum
High reliability
Prevent oil backflow
Safe and convenient for roof top use
Improved efficiency and durability

Resources

Instruction/Installation Manual

Specification Sheet
