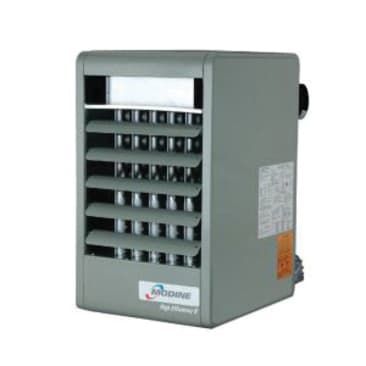

MODINE PDP300AE0130SBAN 300MBH PROPELLER UNIT HEATER
MFR Part #:Â PDP300AE0130SBAN
SKU #:Â 3149768
Brand:Â MODINE
UPC:Â 046629437162
MODINE PDP Series PDP300AE0130SBAN Unit Heater, 115 V, 240000 Btu/hr, 1 ph, Liquid Propane Gas, Natural Gas Fuel
For commercial use
ANSI Z83.8 Certified | CSA Certified | ETL Listed | UL Listed
Product Details
Attributes
Features
Resources
MODINE Unit Heater, PDP Series, 240000 Btu/hr, 115 V, 1123 fpm Flow Rate, 4460 cfm, 1/2 hp, 1 ph, 60 Hz, NPT Connection, 1/2 in Connection, Liquid Propane Gas, Natural Gas Fuel, 1075 rpm Rotational Speed, Steel, Aluminized/Baked-On Polyester Powder-Coated, 40-1/4 in H x 28-5/8 in L x 25 in D
CFM Rating:4460 cfm
Connection Size:1/2 in
Connection Type:NPT
Dimensions:40-1/4 in H x 28-5/8 in L x 25 in D
Finish:Aluminized/Baked-On Polyester Powder-Coated
Flow Rate:1123 fpm
Frequency Rating:60 Hz
Fuel Type:Liquid Propane Gas, Natural Gas
HP Rating:1/2 hp
Material:Steel
Phase:1 ph
Rotational Speed:1075 rpm
Voltage Rating:115 V
- 80% thermal efficiency, maximizing seasonal efficiency through the use of a collector box and the power exhauster
- A power exhaust that can be rotated 180 deg, the unit can be vented vertically or horizontally
- A 100% shut-off, intermittent pilot-ignition system with continuous retry, at no extra charge, this ignition system allows for all PDP/BDP units to be field-converted to propane, if desired
- A safety pressure-switch to assure safe venting conditions
- Designed to utilize the smallest-diameter vent pipe possible
- Wing screws so that the bottom pan can be dropped without a screwdriver or nut driver
- A levels hanging mechanism for easy field adjustments after adding accessories that may change the unit's centre of gravity
- Aluminized steel heat exchanger/burner
- A automatic reset vent pressure switch is supplied on all power vented unit heaters to prevent operation of the main burner in the event there is restricted venting of flue products
- All power vented unit heaters are supplied with a round vent pipe connection, power exhauster may be rotated 180 deg to allow for various venting directions
- The PDP (propeller) high efficiency II gas-fired unit heaters are a generation of products that are inexpensive to install, easy-to-use and offer excellent in-service economy
Product Details
MODINE Unit Heater, PDP Series, 240000 Btu/hr, 115 V, 1123 fpm Flow Rate, 4460 cfm, 1/2 hp, 1 ph, 60 Hz, NPT Connection, 1/2 in Connection, Liquid Propane Gas, Natural Gas Fuel, 1075 rpm Rotational Speed, Steel, Aluminized/Baked-On Polyester Powder-Coated, 40-1/4 in H x 28-5/8 in L x 25 in D
Attributes
CFM Rating:Â 4460 cfm
Connection Size:Â 1/2 in
Connection Type:Â NPT
Dimensions:Â 40-1/4 in H x 28-5/8 in L x 25 in D
Finish:Â Aluminized/Baked-On Polyester Powder-Coated
Flow Rate:Â 1123 fpm
Frequency Rating:Â 60 Hz
Fuel Type:Â Liquid Propane Gas, Natural Gas
HP Rating:Â 1/2 hp
Material:Â Steel
Phase:Â 1 ph
Rotational Speed:Â 1075 rpm
Voltage Rating:Â 115 V
Features
- 80% thermal efficiency, maximizing seasonal efficiency through the use of a collector box and the power exhauster
- A power exhaust that can be rotated 180 deg, the unit can be vented vertically or horizontally
- A 100% shut-off, intermittent pilot-ignition system with continuous retry, at no extra charge, this ignition system allows for all PDP/BDP units to be field-converted to propane, if desired
- A safety pressure-switch to assure safe venting conditions
- Designed to utilize the smallest-diameter vent pipe possible
- Wing screws so that the bottom pan can be dropped without a screwdriver or nut driver
- A levels hanging mechanism for easy field adjustments after adding accessories that may change the unit's centre of gravity
- Aluminized steel heat exchanger/burner
- A automatic reset vent pressure switch is supplied on all power vented unit heaters to prevent operation of the main burner in the event there is restricted venting of flue products
- All power vented unit heaters are supplied with a round vent pipe connection, power exhauster may be rotated 180 deg to allow for various venting directions
- The PDP (propeller) high efficiency II gas-fired unit heaters are a generation of products that are inexpensive to install, easy-to-use and offer excellent in-service economy
