HEATLINK HEP025P V2 HEP 25MBH PANEL
MFR Part #: HEP025P
SKU #: 1301455
Brand: HeatLink®
UPC: 627998011223

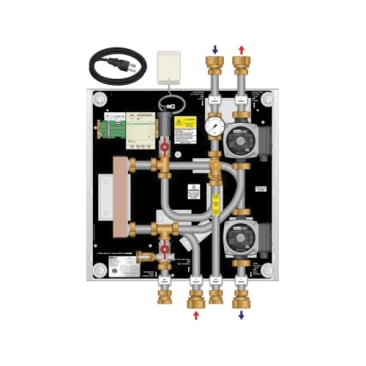

HeatLink® HEP025P Isolation Heat Exchanger Panel
Primary Pump, Secondary Pump, Brazed Plate Heat Exchanger, PLC, 24 hr Timer, 120 VAC 6 ft Power Cord, 24 VAC Plug-In Transformer, Pressure Relief Valve, Pressure Gauge, Automatic Air Vent, Drain, Fill Valve and Panel Enclosure
Product Details
Attributes
Features
Resources
HeatLink® Isolation Heat Exchanger Panel
The main application of the HEP isolation heat exchanger panel is to provide single wall isolation between a DHW tank and a heating system. This panel is not a temperature control device. The secondary water temperature is wholly dependent on the temperature of the primary supply water. The panel is pre-wired to work with an optional DHW priority switch which is mounted outside the panel.
Boiler Output:25 MBtu/hr
Dimensions:18-1/4 in W x 7-3/4 in D x 18-1/4 in H
Domestic/Import:Import
Finish:Powder Coated
Full Load Current:10 A
Material:Steel
Series:HEP
- When a thermostat calls for heat, its internal 24 V contacts close, the auxiliary terminals close and both pumps turn-on
- When the requirements of the thermostat are met, the internal contacts of the thermostat open, the auxiliary contacts open and the pumps stop
- The Exclusive TankSaver® design aids the glass lining process to ensure optimum coverage and guards tank openings for watertight connections
- If the optional DHW priority flow switch is installed and the DHW flow is above the factory setting for this device, the primary pump stops and the auxiliary contacts open
- When the DHW flow drops below the factory setting the panel resumes normal operation
Product Details
HeatLink® Isolation Heat Exchanger Panel
The main application of the HEP isolation heat exchanger panel is to provide single wall isolation between a DHW tank and a heating system. This panel is not a temperature control device. The secondary water temperature is wholly dependent on the temperature of the primary supply water. The panel is pre-wired to work with an optional DHW priority switch which is mounted outside the panel.
Attributes
Boiler Output: 25 MBtu/hr
Dimensions: 18-1/4 in W x 7-3/4 in D x 18-1/4 in H
Domestic/Import: Import
Finish: Powder Coated
Full Load Current: 10 A
Material: Steel
Series: HEP
Features
- When a thermostat calls for heat, its internal 24 V contacts close, the auxiliary terminals close and both pumps turn-on
- When the requirements of the thermostat are met, the internal contacts of the thermostat open, the auxiliary contacts open and the pumps stop
- The Exclusive TankSaver® design aids the glass lining process to ensure optimum coverage and guards tank openings for watertight connections
- If the optional DHW priority flow switch is installed and the DHW flow is above the factory setting for this device, the primary pump stops and the auxiliary contacts open
- When the DHW flow drops below the factory setting the panel resumes normal operation
