WHITE RODGERS 36J54-214 DIRECT BRNR-IGNTN ONLY-FST OPN-2 STAGE
MFR Part #: 36J54-214
SKU #: 1685298
Brand: White-Rodgers™
UPC: 786710535741

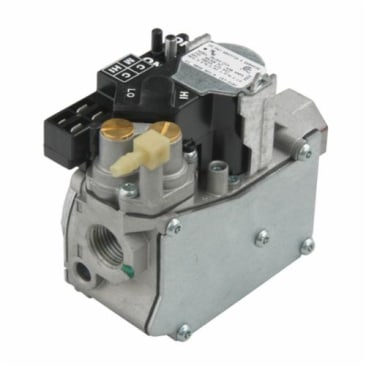

White-Rodgers™ 36J54-214 2-Stage Gas Valve, 1/2 in, HSI/DSI Ignition, 140000 Btu/hr Nominal, Liquid Propane/Natural Gas, 24 V Coil
Inlet/Outlet Pressure Taps, Plastic Hose Barb (For Connection to 1/4 in Hose/Flexible Tubing), LP Gas Conversion Kit and 1/2 x 3/8 in NPT Inlet/Outlet Reducer Bushings
CSA Certified
Product Details
Features
Resources
White-Rodgers™ Gas Valve, 2-Stage, Series: 36J, 1/2 in Nominal, 0.5 psi Pressure, HSI/DSI Ignition, 140000 Btu/hr Nominal, Liquid Propane/Natural Gas Gas, 24 V Coil, -40 to 175 deg F, Import
The 36J is a combination gas control valve designed for use with non-piloted intermittent ignition systems. the control is designed to meet today's maximum capacity, smaller size and high efficiency gas systems.
- Fast opening
- Hi-Fire regulator calibrated to 3-1/2 in +/-0.3 in W.C. at 100000 KBtu/hr (natural gas)
- Lo-fire regulator calibrated to 1.5 +/- 0.3 in W.C
- Quiet redundant
- 0.43 A
- 1-1/2 to 3-1/2 in (low to high) regulator setting
- Straight-thru
- Filter screen
- Replaces 36G54-214
- For non-piloted intermittent ignition systems
- 226800 Btu/hr LPG nominal capacity
Product Details
White-Rodgers™ Gas Valve, 2-Stage, Series: 36J, 1/2 in Nominal, 0.5 psi Pressure, HSI/DSI Ignition, 140000 Btu/hr Nominal, Liquid Propane/Natural Gas Gas, 24 V Coil, -40 to 175 deg F, Import
The 36J is a combination gas control valve designed for use with non-piloted intermittent ignition systems. the control is designed to meet today's maximum capacity, smaller size and high efficiency gas systems.
Features
- Fast opening
- Hi-Fire regulator calibrated to 3-1/2 in +/-0.3 in W.C. at 100000 KBtu/hr (natural gas)
- Lo-fire regulator calibrated to 1.5 +/- 0.3 in W.C
- Quiet redundant
- 0.43 A
- 1-1/2 to 3-1/2 in (low to high) regulator setting
- Straight-thru
- Filter screen
- Replaces 36G54-214
- For non-piloted intermittent ignition systems
- 226800 Btu/hr LPG nominal capacity
